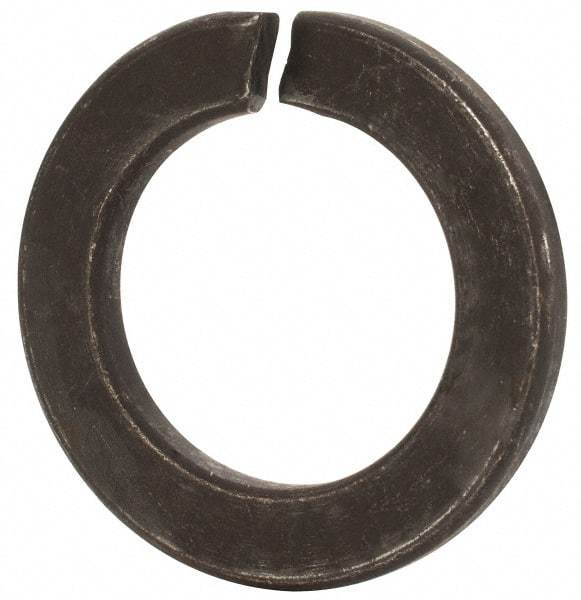

Value Collection - M42, 42.5mm ID, 68.2mm OD, 7mm Thick Split Lock Washer - Grade 8 Spring Steel, Uncoated, 42.5mm Min ID, 43.7mm Max ID
Item #: 40916249
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Type | Split Lock Washer |
| Screw Size | M42 |
| Material | Spring Steel |
| Material Grade | Grade 8 |
| Finish/Coating | Uncoated |
| Inside Diameter (mm) | 42.50 |
| Outside Diameter (mm) | 68.20 |
| Thickness (mm) | 7.00 |
| Minimum Inside Diameter (mm) | 42.50 |
| Maximum Inside Diameter (mm) | 43.70 |
| Minimum Outside Diameter (mm) | 68.20 |
| Maximum Outside Diameter (mm) | 68.20 |
| Military Specification | Does Not Meet Military Specifications |
| Maximum Thickness (mm) | 7.00 |
| Hardness | Rockwell C44-C51 |
| Fastener Standard | DIN 127 |
