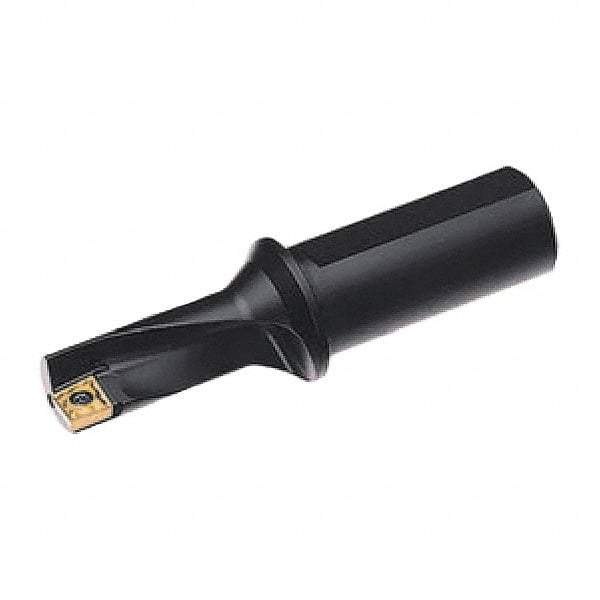

Allied Machine and Engineering - 0.71" Max Drill Depth, 2.25xD, 10mm Diam, Indexable Insert Drill - 1 Insert, 3/8" Shank Diam, Straight Shank
Item #: 40791931
Brand: Allied Machine and Engineering
Model #: 11065202
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | EC |
| Drill Diameter (mm) | 10.00 |
| Drill Diameter (Decimal Inch) | 0.3937 |
| Maximum Drill Depth (Decimal Inch) | 0.7100 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.25xD |
| Insert Size (Decimal Inch) | 0.1570 |
| Number of Drill Inserts | 1 |
| Maximum Drill Diameter (Decimal Inch) | 0.4130 |
| Overall Length/Projection (Decimal Inch) | 2.3700 |
| Insert Compatibility | XCET 040102FL-27P; XCET 040102FL-27Q; XCET 040102FR-27P; XCET 040102FR-27Q; XCET 040104FL-27P; XCET 040104FL-27Q; XCET 040104FR-27P; XCET 040104FR-27Q; XCNT 040102EL; XCNT 040102ER; XCNT 040104EL; XCNT 040104ER |
| Flute Length (Decimal Inch) | 0.7100 |
| Body Length (Decimal Inch) | 0.8700 |
| Shank Length (Decimal Inch) | 1.5000 |
| Collar Diameter (Decimal Inch) | 0.4720 |
| Series | EcoCut Classic |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
