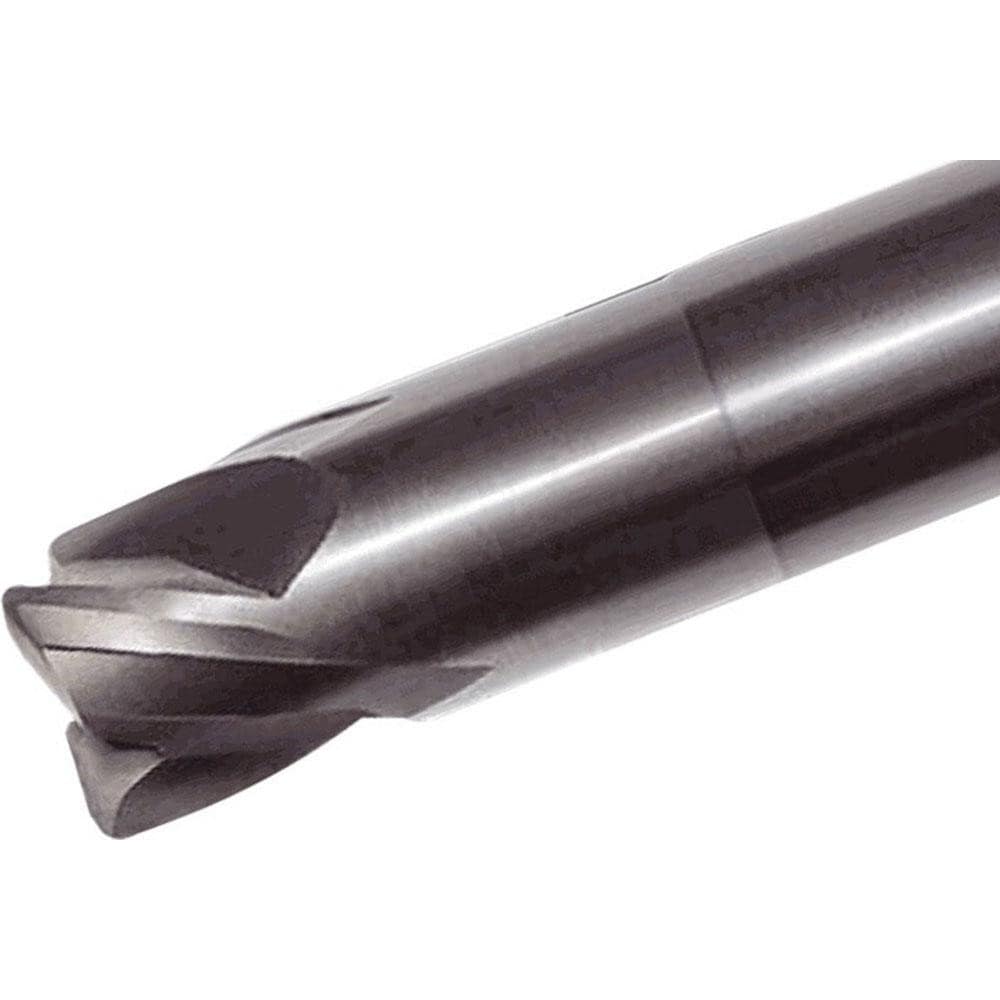

Corner Radius End Mill: 10 mm Dia, 0.50 mm LOC, 3 Flute, Ceramic
Item #: 33988619
Brand: Tungaloy
Model #: 5877469
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3937 |
| Mill Diameter (mm) | 10.00 |
| Number Of Flutes | 3 |
| Length of Cut (mm) | 0.50 |
| End Mill Material | Ceramic |
| Coating/Finish | Bright/Uncoated |
| Centercutting | No |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 65.00 |
| Coolant Through | No |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
| Length Type | Short |
| Flute Type | Straight |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 10.00 |
| Neck Diameter (mm) | 9.50 |
| Reach Length (mm) | 25.00 |
| Primary Workpiece Material | Cast Iron; Superalloys & Titanium |
| UNSPSC Code | 27112803 |
| Material Grade | FX510 |
| Series | TCFF-A3 |
| For Use With. | ER-SRF JET2 with TungClick; ER Collet; Shrink Fit Holder; Hydraulic Holder; Milling Chuck Sleeve |
