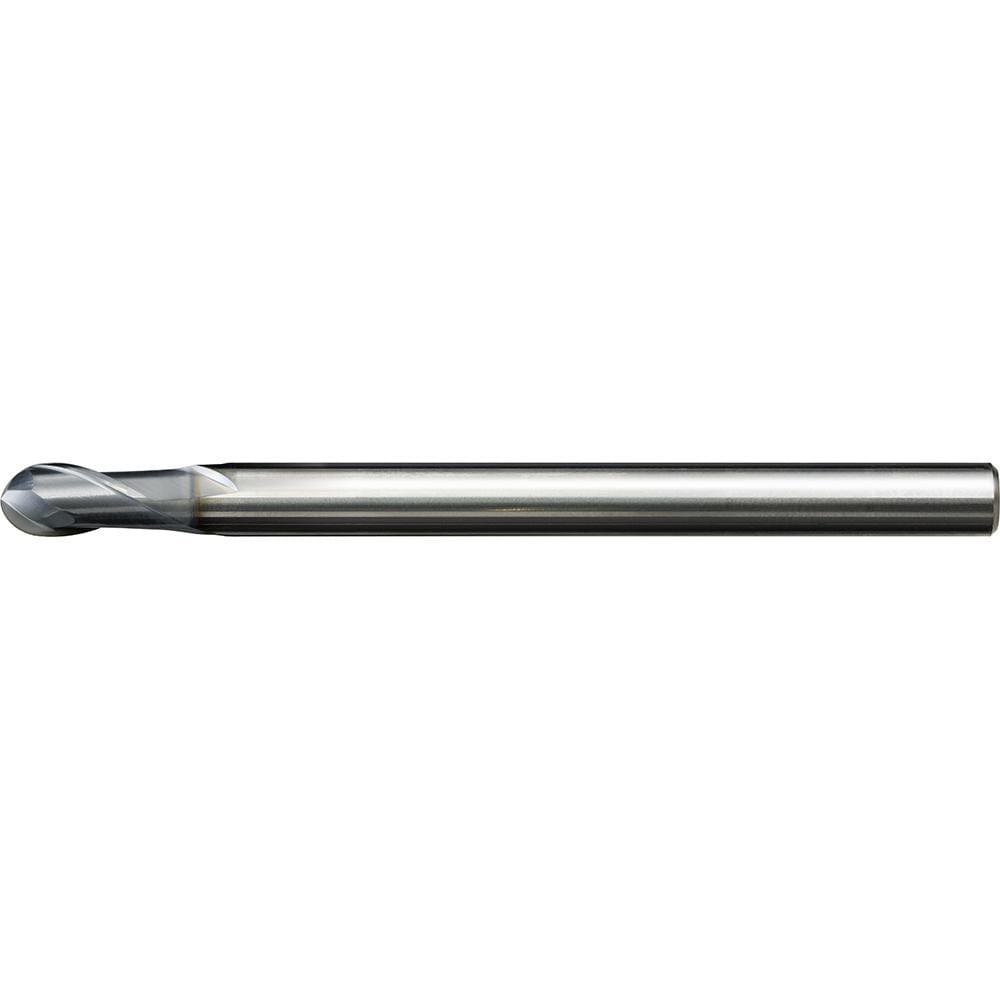

Ball End Mill: 0.60 mm Dia, 0.60 mm LOC, 2 Flute, Solid Carbide
Item #: 34014431
Brand: US Union Tool
Model #: 2777060
Product Specifications
| Mill Diameter (mm) | 0.60 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Length of Cut (mm) | 0.60 |
| Coating/Finish | UT |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 30 |
| Overall Length (mm) | 50.00 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.0000 - 0.0500 |
| Length Type | Stub |
| Helix Style | Medium |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 6.00 |
| Nose Radius (mm) | 0.30 |
| Reach Length (mm) | 0.60 |
| Mill Diameter Tolerance | +0.000/-0.015 mm |
| Shank Diameter Tolerance | +0.000/-0.005 mm |
| Maximum Helix Angle | 30 |
| Minimum Helix Angle | 30 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Steel |
| Primary Workpiece Material Code | P; H; N |
| Secondary Workpiece Material | Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K |
| Material Grade | Super MG |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | CSEB |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | PVD |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Coarse |
| Coolant Through | No |
| Manufacturers Catalog Number | CSEB2006-0060-6 |
| System Of Measurement | Metric |
