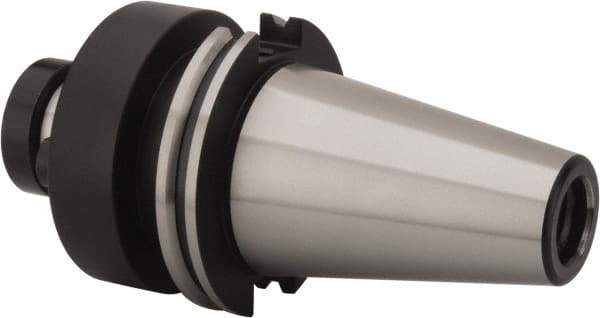

Parlec - CAT50 Taper Shank 1-1/2" Pilot Diam Shell Mill Holder - 2.4" Flange to Nose End Projection, 3-3/4" Nose Diam, 3/4-16 Lock Screw, Through-Spindle & DIN Flange Coolant
Item #: 40662389
Brand: Parlec
Model #: C50BC-15SM2
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Pilot Diameter (Inch) | 1-1/2 |
| Pilot Diameter (Decimal Inch) | 1.5000 |
| Projection Flange to Nose End (Decimal Inch) | 2.4000 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 3.7500 |
| Overall Length (Decimal Inch) | 6.4000 |
| Balanced to (RPM) | 15000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Lock Screw Thread Size | 3/4-16 |
