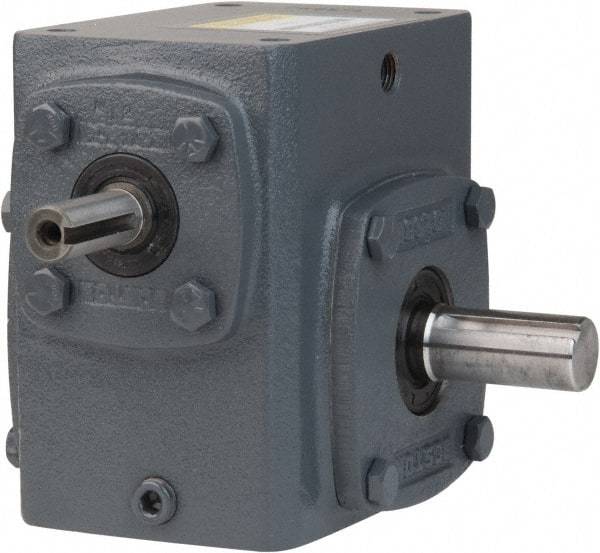

Boston Gear - 1.54 Centerline Distance, 10:1, 175 RPM Output, 1.2 Input Horsepower, 397 Lbs. Max Torque, Speed Reducer - Part No. 715-10-J, 5/8" Shaft Diam, Single Shaft Right, 3.44" High
Item #: 40651218
Brand: Boston Gear
Model #: 51635
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.540 |
| Ratio | 10:1 |
| PartNo | 715-10-J |
| Shaft Style | Single Shaft Right |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Height (Inch) | 3.44 |
| Maximum Torque Inch/Lbs (Pounds) | 397.00 |
| Maximum Input Horsepower | 1.20 |
| Output RPM at 1750 Input | 175.0 |
