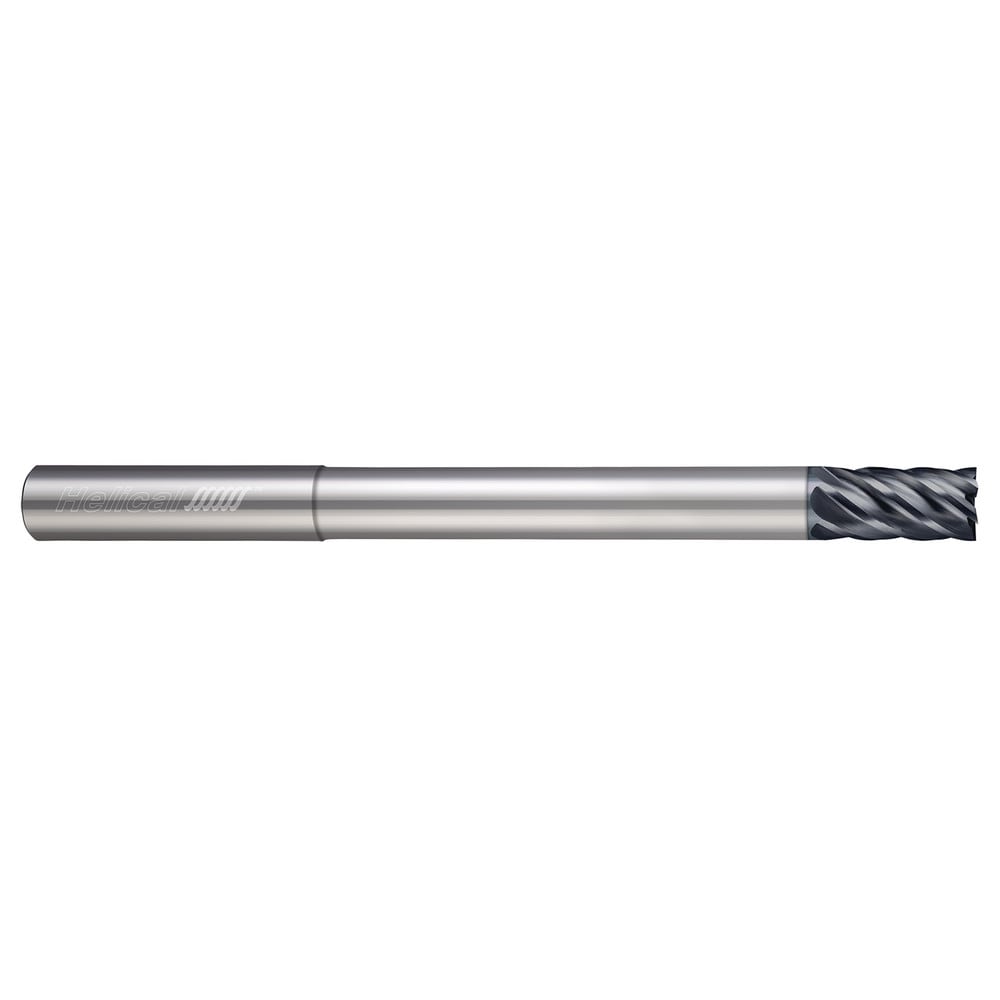

Square End Mill: 6 Flute, Solid Carbide
Item #: 84294834
Brand: Helical Solutions
Model #: 88595
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Mill Diameter (Inch) | 3/8 |
| Number Of Flutes | 6 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.5000 |
| Length of Cut (Inch) | 1/2 |
| Length of Cut (mm) | 12.70 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Single Or Double End | Single |
| Coating/Finish Family | APLUS |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 37 |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Coating/Finish | APLUS |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Reach Length (Inch) | 1-5/8 |
| Reach Length (Decimal Inch) | 1.6250 |
| Series | End Mills for Steels - 6 Flute - Square - Variable Pitch - Reduced Neck |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
