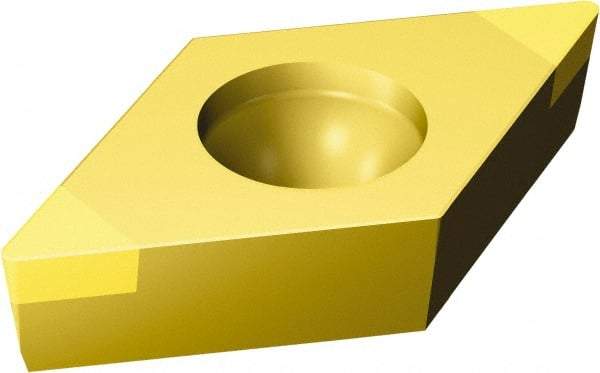

Sandvik Coromant - DCGW32.52 Grade 7015 CBN Turning Insert - TiN Finish, 55° Parallelogram, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 40173940
Brand: Sandvik Coromant
Model #: 5730502
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | DCGW |
| Insert Size | 32.52 |
| Material | CBN |
| Length (mm) | 2.10 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 7015 |
| Coating | TiN |
| OverallLength (mm) | 11.63 |
| Overall Length (Decimal Inch) | 0.4578 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1563 |
| ISO Number | DCGW11T308S01020F 7015 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | DCGW11T308S01020F 7015 |
| Primary Workpiece Material | H |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 2.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.0827 |
| Insert Holding Method | Screw |
| Cutting Width (mm) | 2.10 |
| FullRadius | Yes |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Parallelogram |
