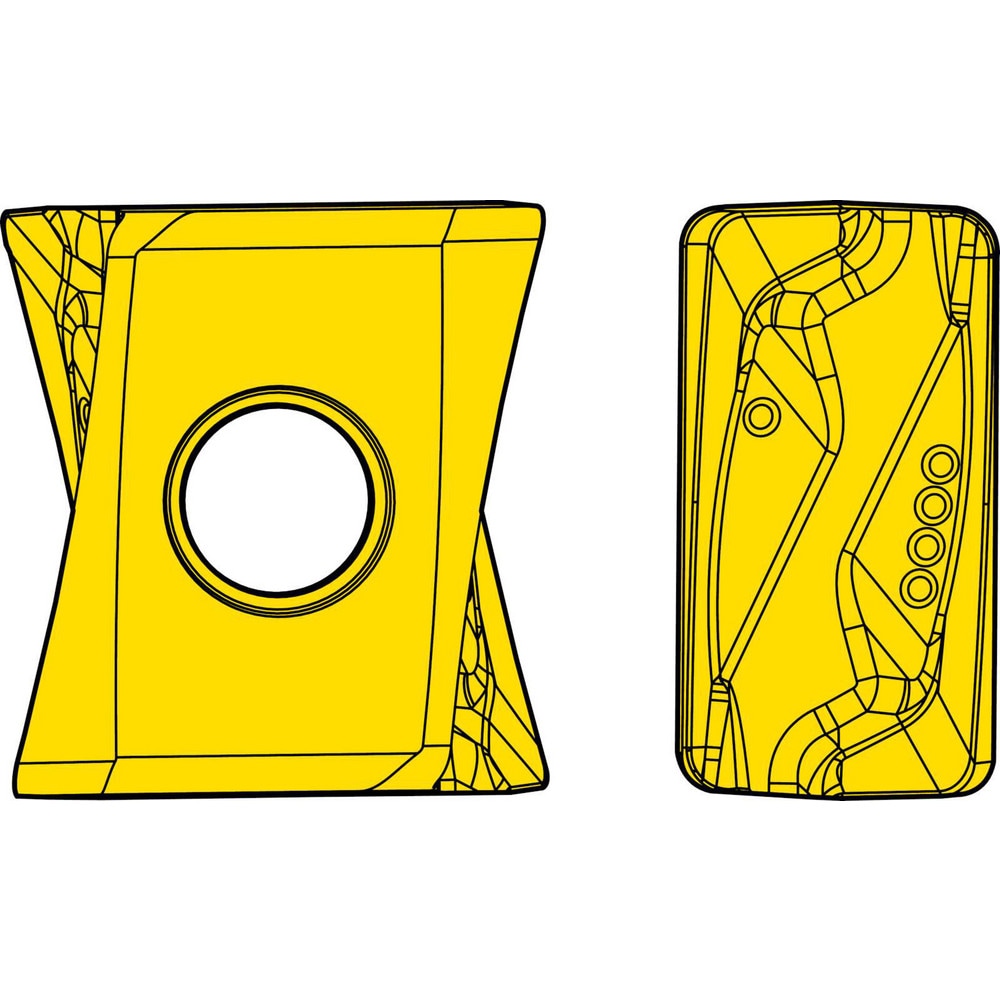

Milling Insert: LOEX120763R-T2-M09 F40M, Carbide
Item #: 86369972
Brand: Seco
Model #: 10207785
Product Specifications
| Insert Style | LOEX |
| Insert Size | 12 |
| Insert Material | Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | F40M |
| Corner Radius (Decimal Inch) | 0.2480 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3654 |
| Coating/Finish | TiN; TiAlN |
| Relief Angle | 0.000 |
| Insert Size Code | 120763 |
| Material Grade | P10-P40; M15-M35 |
| Inscribed Circle (Decimal Inch) | 0.2953 |
| Thickness Range (Decimal Inch) | 0.3500 to 0.5000 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Series | LOEX |
| Coating Process | PVD |
| Cutting Edge Effective Length (Decimal Inch) | 0.4724 |
| Rake | Negative |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium |
| Secondary Workpiece Material Code | S; K; M; N |
| Ansi Code | LOEX120763R-T2-M09 |
| Iso Code | LOEX120763R-T2-M09 |
| Standards | ISO; ANSI |
| Rake Angle | 36.000 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 10207785 |
| Cutter Series Compatibility | R217/220.94-12 |
| Chip Breaker | M09 |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Material Application | Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2953 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5591 |
| Country of Origin | Sweden |
