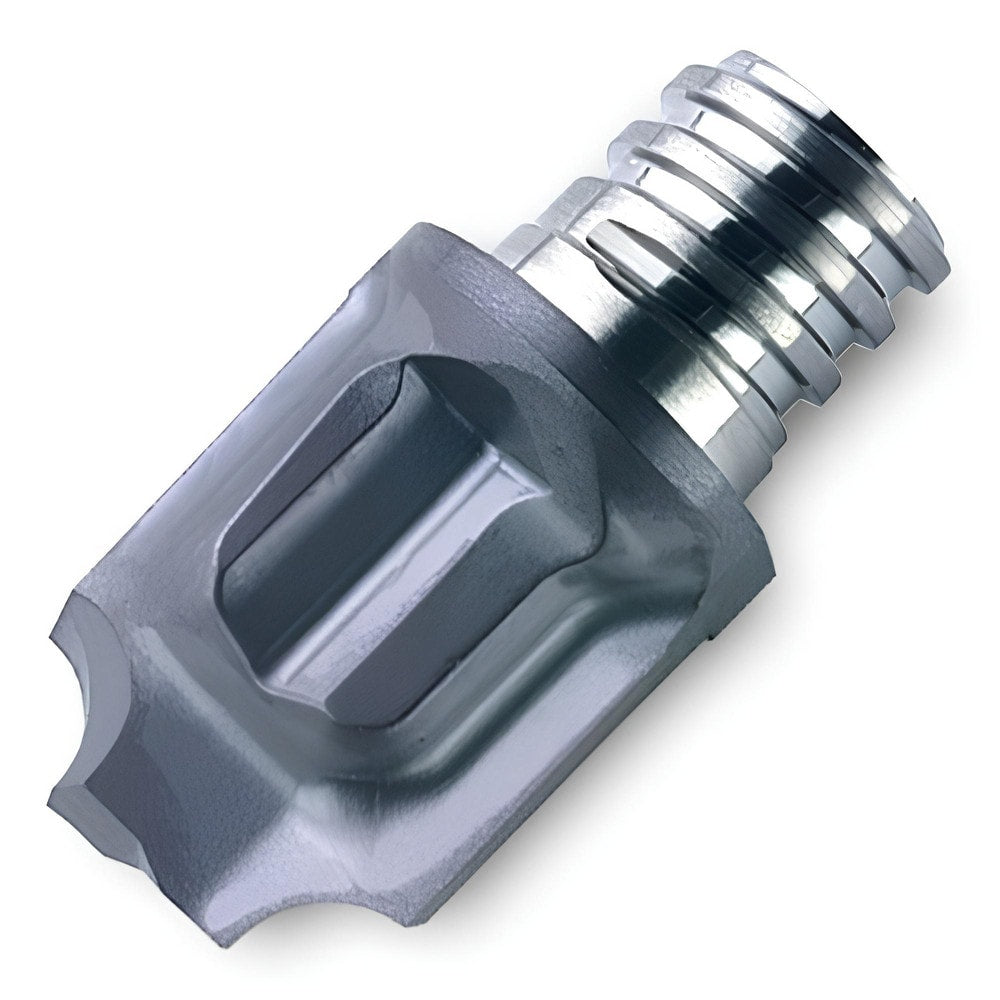

Brand: Ingersoll Cutting Tools / Part #: 5820397
Item #: 94554011
Brand: Ingersoll Cutting Tools
Model #: 5820397
Product Specifications
| Milling Tip Type | Corner Rounding |
| Milling Tip Style | 45R |
| Maximum Depth of Cut (mm) | 2.00 |
| Cutting Diameter (mm) | 6.00 |
| Tool Material | Carbide |
| Depth of Cut (mm) | 2.00 |
| Manufacturer Grade | IN2005 |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | 45R |
| Coating Process | PVD |
| Corner Radius (mm) | 2.00 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Thread Size | T06 |
| Manufacturers Catalog Number | 45R10009T6RA20 |
| Length of Cut (mm) | 10.5000 |
| Coolant Through | No |
| Overall Length (mm) | 12.5000 |
| Included Angle Degree | 90 |
| Coating/Finish | TiAlN |
| Number Of Flutes | 2 |
