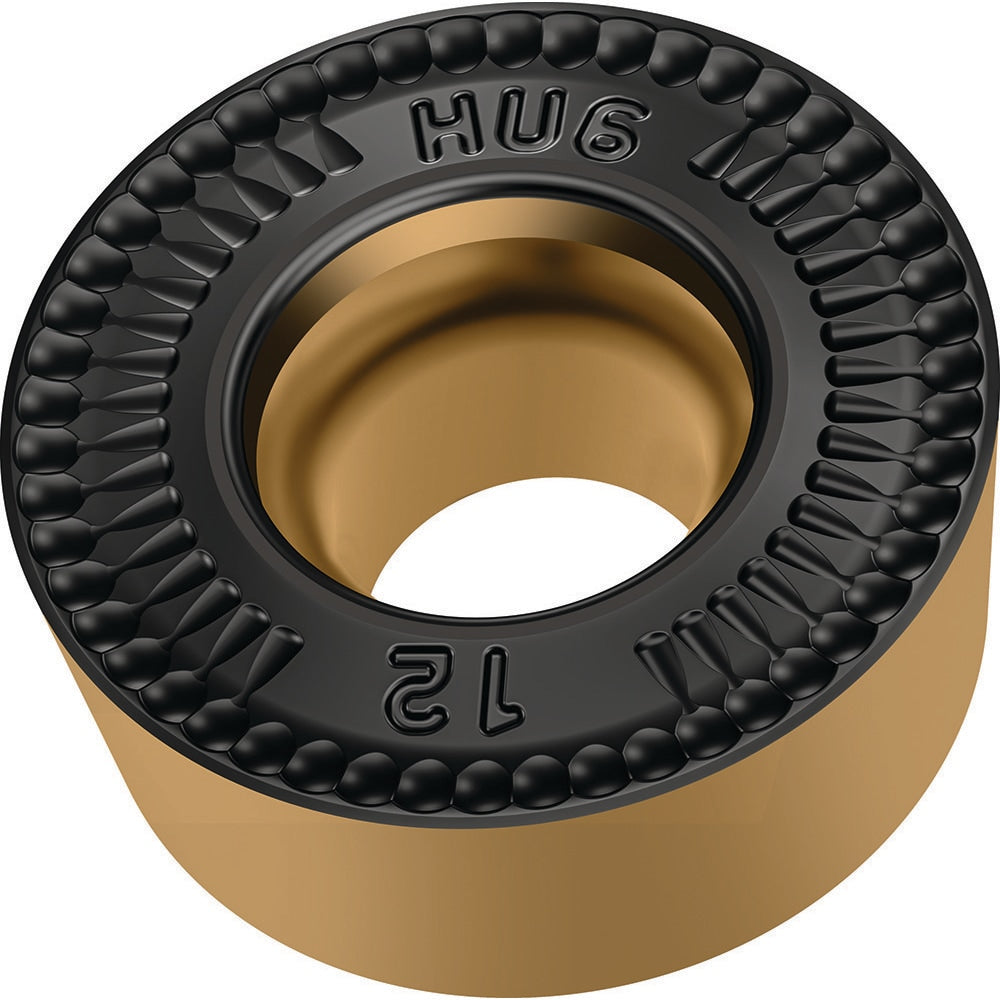

Turning Insert: RCMT1606M0HU6 WPP30G, Carbide
Item #: 91641373
Brand: Walter
Model #: 8205019
Product Specifications
| ANSI Insert Code | RCMTN/A |
| ISO Insert Code | RCMT1606M0 |
| Relief Angle | 7.000 |
| Insert Style | RCMT |
| Corner Radius (mm) | 8.00 |
| Included Angle | 0.00 |
| Manufacturer Grade | WPP30G |
| Coating/Finish | TiCN+Al2O3+(TiN) |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 6.35 |
| Series | RCMT |
| Inscribed Circle (mm) | 16.00 |
| Insert Material | Carbide |
| Insert Shape | Round |
| Chip Breaker Operation | Heavy Machining |
| Grade Characteristics | Stainless Steel (M) - High Toughness; Cast Iron (K) - High Toughness; Steel (P) - High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | R |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.5000 |
| Maximum Depth of Cut (mm) | 7.00 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Length (mm) | 16.00 |
| Manufacturers Catalog Number | RCMT1606M0-HU6 WPP30G |
| Chip Breaker | HU6 |
| Width (mm - 2 Decimals) | 16.00 |
| ANSI Size Code | N/A |
| ISO Size Code | 1606M0 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 16 |
| Country of Origin | Germany |
