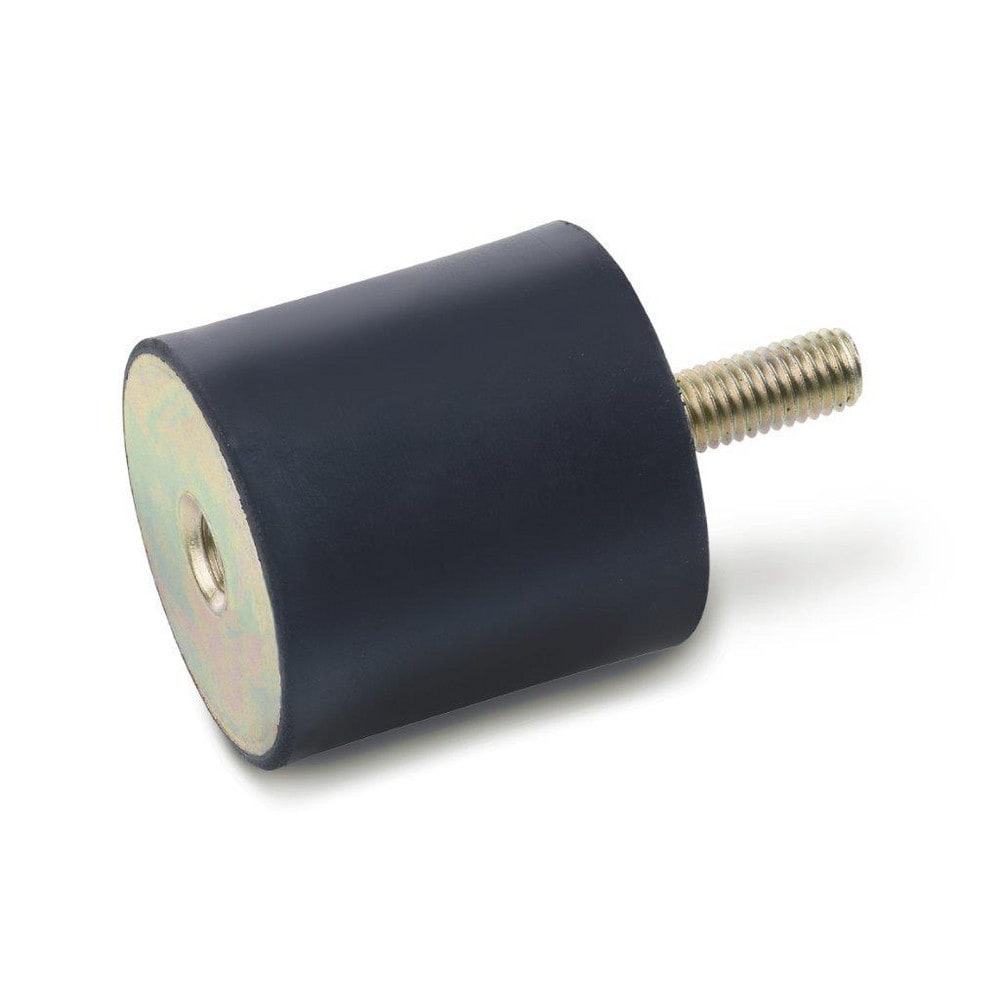

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Zinc-Plated Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 889.60 N; Top Diameter: 25.00; Bottom Diameter: 25; Thread Size: 1/4-20; Overall Width: 25 mm
Item #: 67916023
Brand: J.W. Winco
Model #: 351.2-25-25-1/4-55
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 889.60 N |
| Top Diameter | 25.00 |
| Bottom Diameter | 25 |
| Thread Size | 1/4-20 |
| Overall Width | 25 mm |
| Overall Diameter | 25 mm |
| Thread Length (Decimal Inch) | 0.5100 |
| Deflection | 0.2500 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud; Plate |
| Shape | Round |
| Thread Depth | 6.0000 |
| Thread Pitch | 1.270 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 38 mm |
| UNSPSC Code | 23153130 |
| Isolator Type | Plate/Stud |
| Insert Material | Zinc-Plated Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 889.60 N |
| Top Diameter | 25.00 |
| Bottom Diameter | 25 |
| Thread Size | 1/4-20 |
| Overall Width | 25 mm |
| Overall Diameter | 25 mm |
| Thread Length (Decimal Inch) | 0.5100 |
| Deflection | 0.2500 |
| Hardness Rating | Shore 55A |
| Mount Type | Stud; Plate |
| Shape | Round |
| Thread Depth | 6.0000 |
| Thread Pitch | 1.270 mm |
| Thread Standard | UNC |
| Height (Decimal Inch) | 38 mm |
| UNSPSC Code | 23153130 |
| MSC Part # | 67916023 |
| Mfr Part # | 351.2-25-25-1/4-55 |
| Country of Origin Country of Origin is subject to change | Hungary |
