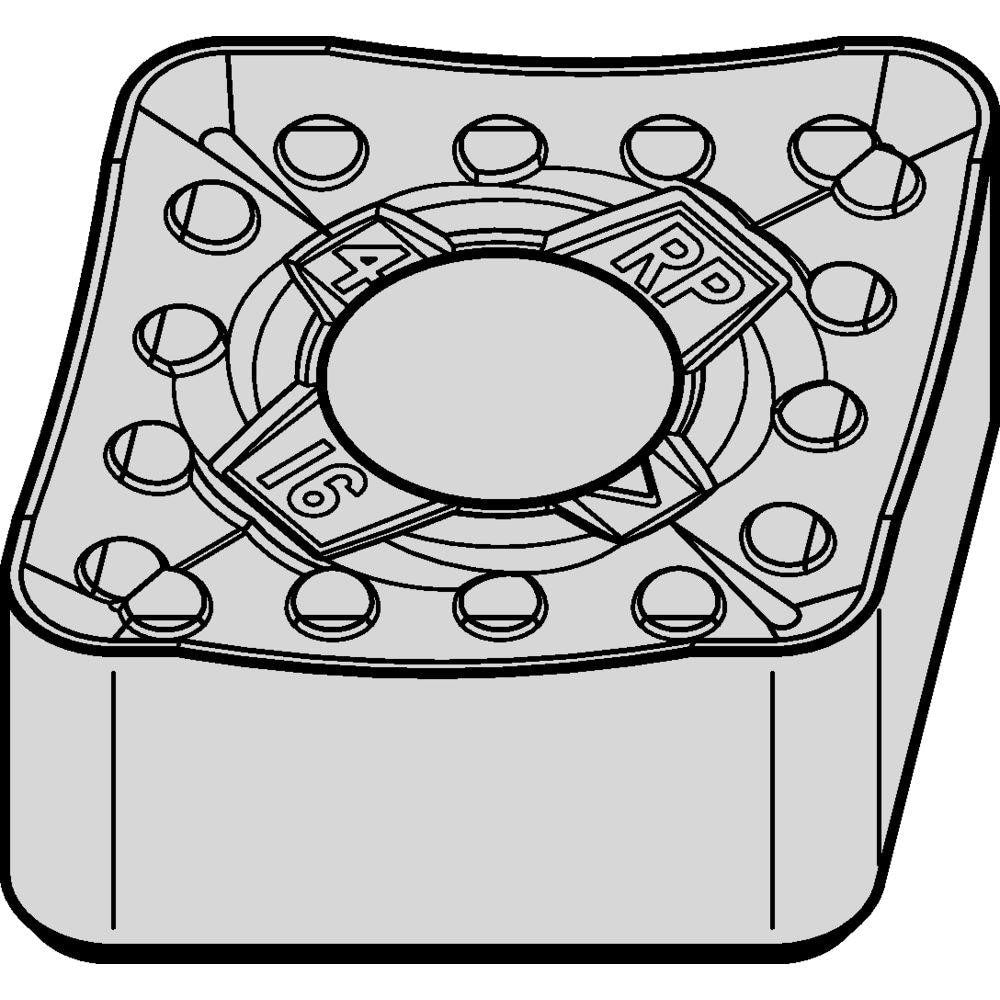

Turning Insert: CNMM866RP KCP25C, Carbide
Item #: 84241850
Brand: Kennametal
Model #: 7088034
Product Specifications
| ANSI Insert Code | CNMM |
| ISO Insert Code | CNMM |
| Relief Angle | 0.000 |
| Insert Style | CNMM |
| Corner Radius (mm) | 2.40 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Included Angle | 80.00 |
| Manufacturer Grade | KCP25C |
| Coating/Finish | MT-TiCN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/8 |
| Insert Thickness | 9.53 |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Series | Kenloc™ Inserts |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (mm) | 25.40 |
| Insert Material | Carbide |
| Insert Shape | Diamond 80° |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.3594 |
| Hole Diameter (Mm) ( - 0 Decimals) | 9.1300 |
| Insert Holding Method | Pin; Clamp |
| Width (Inch) | 1 |
| Clearance Code | N |
| Tolerance Code | M |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.0154 |
| Insert Length (mm) | 25.79 |
| Chip Breaker | RP |
| Rake Angle | 0 |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (mm - 2 Decimals) | 25.40 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 866 |
| Country of Origin | UNITED STATES |
