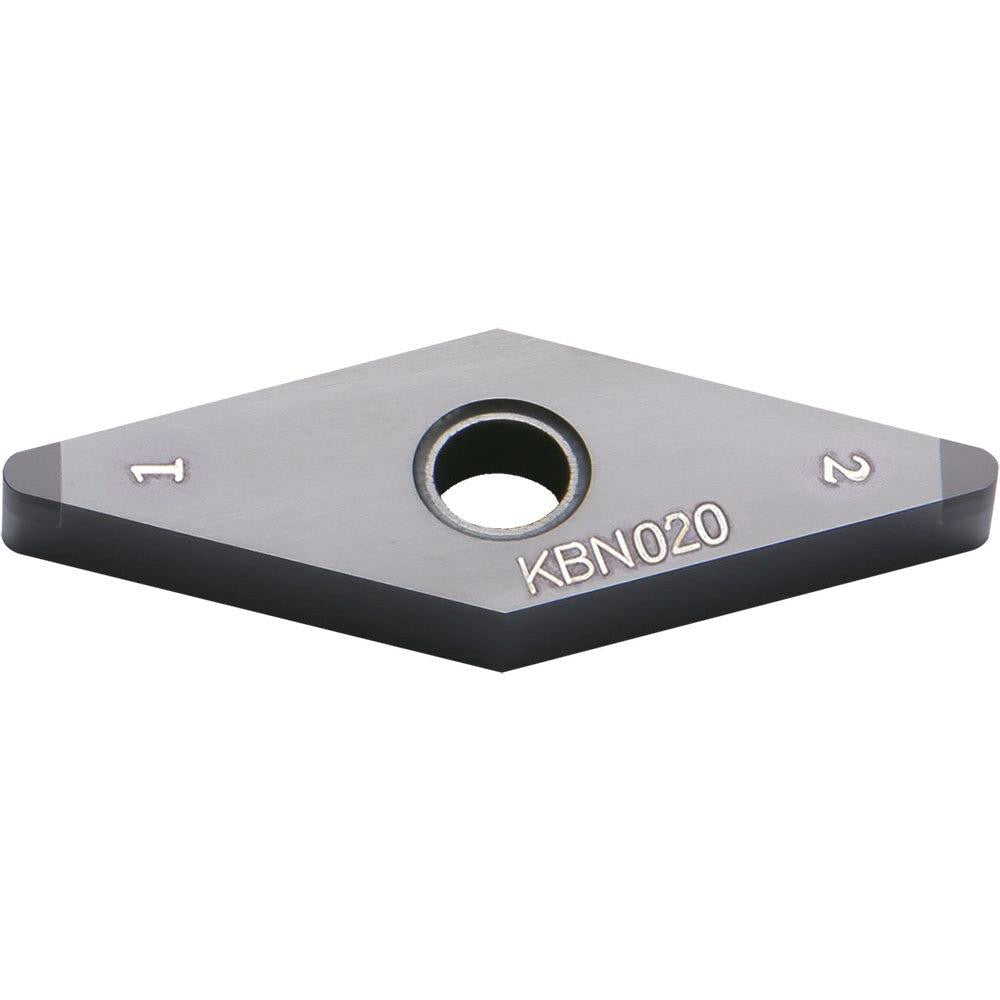

Turning Insert: VNGA331S00730METKBN020, CBN
Item #: 71818587
Brand: Kyocera
Model #: TFC00120
Product Specifications
| ANSI Insert Code | VNGA331 |
| ISO Insert Code | VNGA160404 |
| Relief Angle | 0 |
| Insert Style | VNGA |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Included Angle | 35 |
| Manufacturer Grade | KBN020 |
| Coating/Finish | MEGACOAT |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | CBN |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | No Chip Breaker |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material Code | None |
| Iso Code | VNGA160404S01730MET |
| Manufacturers Catalog Number | VNGA331S00730METKBN020 |
| Chip Breaker | No Chip Breaker |
| Cutting Edge Style | Tough |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Facing; Copying; Undercutting |
| Tip Length (Decimal Inch) | 0.0787 |
| Tip Length (mm) | 2.00 |
| ANSI Size Code | 331 |
| ISO Size Code | 160404 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 331 |
| ANSI Insert Code | VNGA331 |
| ISO Insert Code | VNGA160404 |
| Relief Angle | 0 |
| Insert Style | VNGA |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Included Angle | 35 |
| Manufacturer Grade | KBN020 |
| Coating/Finish | MEGACOAT |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Series | ISO Insert |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | CBN |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | No Chip Breaker |
| Grade Characteristics | Hardened Materials (H) - High Wear-Resistance |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | G |
| Coating Process | PVD |
| Rake | Negative |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material Code | None |
| Iso Code | VNGA160404S01730MET |
| Manufacturers Catalog Number | VNGA331S00730METKBN020 |
| Chip Breaker | No Chip Breaker |
| Cutting Edge Style | Tough |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Facing; Copying; Undercutting |
| Tip Length (Decimal Inch) | 0.0787 |
| Tip Length (mm) | 2.00 |
| ANSI Size Code | 331 |
| ISO Size Code | 160404 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 331 |
| MSC Part # | 71818587 |
| Mfr Part # | TFC00120 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
