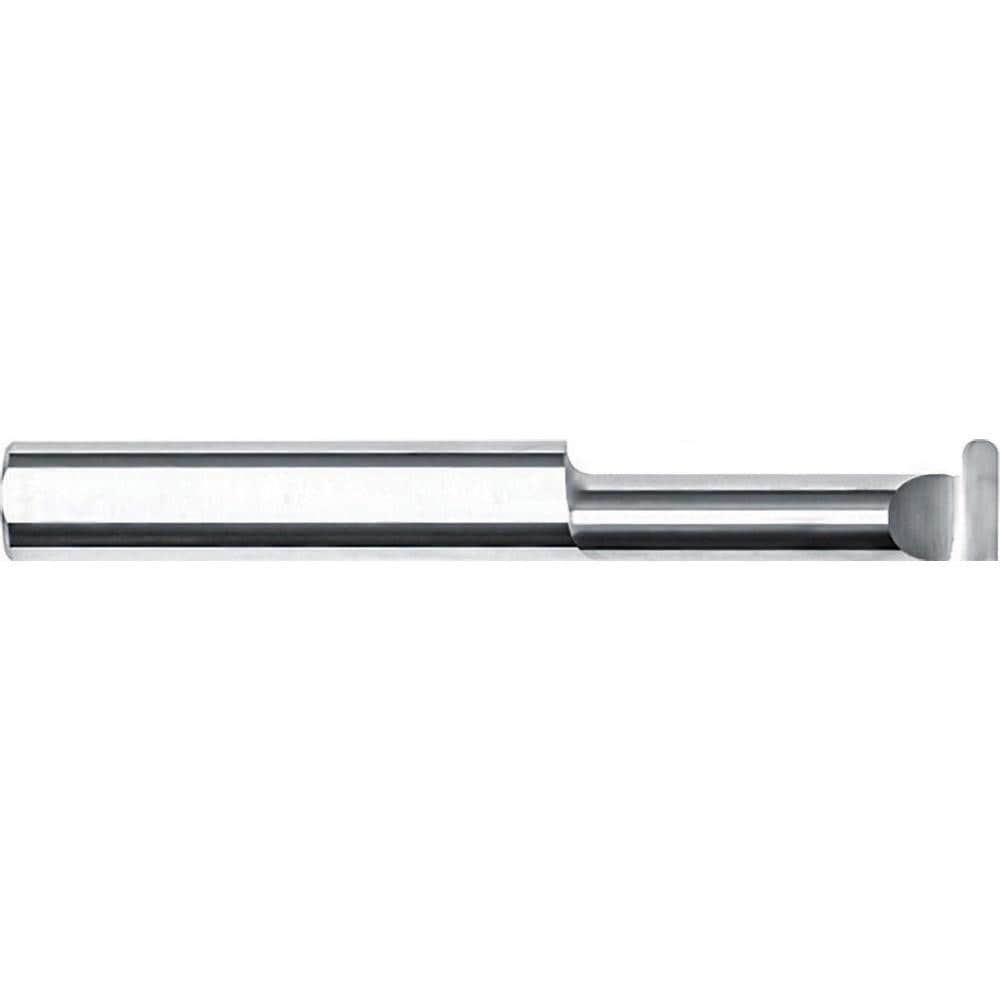

Grooving Tool: Interior, Left Hand, 5/16" Shank Dia
Item #: 68851955
Brand: Internal Tool
Model #: 24-1420
Product Specifications
| Grooving Tool Type | Retaining Ring |
| Cutting Direction | Left Hand |
| Minimum Hole Diameter (Decimal Inch) | 0.3120 |
| Groove Width (Decimal Inch) | 0.0950 |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Decimal Inch) | 2.5000 |
| Full Radius | Yes |
| Maximum Hole Depth (Decimal Inch) | 0.7500 |
| Projection (Decimal Inch) | 0.7500 |
| Material | Solid Carbide |
| Interior/Exterior | Interior |
| Undercut | No |
| Material Grade | Micrograin |
| Maximum Hole Depth (Inch) | 3/4 |
| Shank Length (Decimal Inch) | 1.7500 |
| Overall Length (Inch) | 2-1/2 |
| Tool Bit Adjusting Screw | No |
| Manufacturer's Part Number | 24-1420 |
| UNSPSC Code | 23241600 |
| Grooving Tool Type | Retaining Ring |
| Cutting Direction | Left Hand |
| Minimum Hole Diameter (Decimal Inch) | 0.3120 |
| Groove Width (Decimal Inch) | 0.0950 |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Decimal Inch) | 2.5000 |
| Full Radius | Yes |
| Maximum Hole Depth (Decimal Inch) | 0.7500 |
| Projection (Decimal Inch) | 0.7500 |
| Material | Solid Carbide |
| Interior/Exterior | Interior |
| Undercut | No |
| Material Grade | Micrograin |
| Maximum Hole Depth (Inch) | 3/4 |
| Shank Length (Decimal Inch) | 1.7500 |
| Overall Length (Inch) | 2-1/2 |
| Tool Bit Adjusting Screw | No |
| Manufacturer's Part Number | 24-1420 |
| UNSPSC Code | 23241600 |
| MSC Part # | 68851955 |
| Mfr Part # | 24-1420 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
