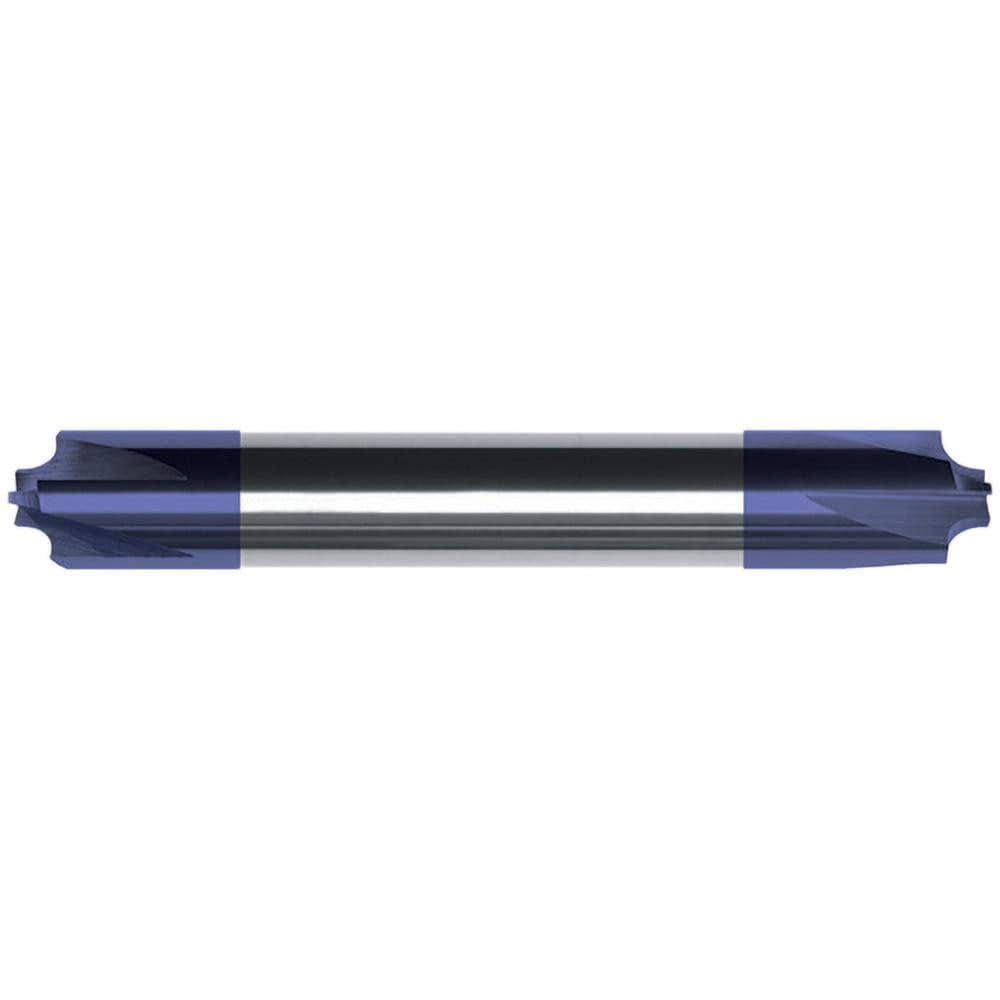

Corner Rounding End Mill: 5/32" Radius, 5/8" Dia, 5 Flutes, Solid Carbide
Item #: 81127409
Brand: Internal Tool
Model #: 168-1100
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 5 |
| Radius (Decimal Inch) | 0.1562 |
| Radius (Inch) | 5/32 |
| Shank Type | Cylindrical |
| Flute Type | Straight |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Tip Diameter (Inch) | 9/32 |
| Tip Diameter (Decimal Inch) | 0.2810 |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.5000 |
| Primary Workpiece Material | Stainless Steel; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; M |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | 168 |
| Helix Angle | 0.00 |
| Coolant Through | No |
| Single Or Double End | Double End |
| Coating/Finish | AlTiN |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
