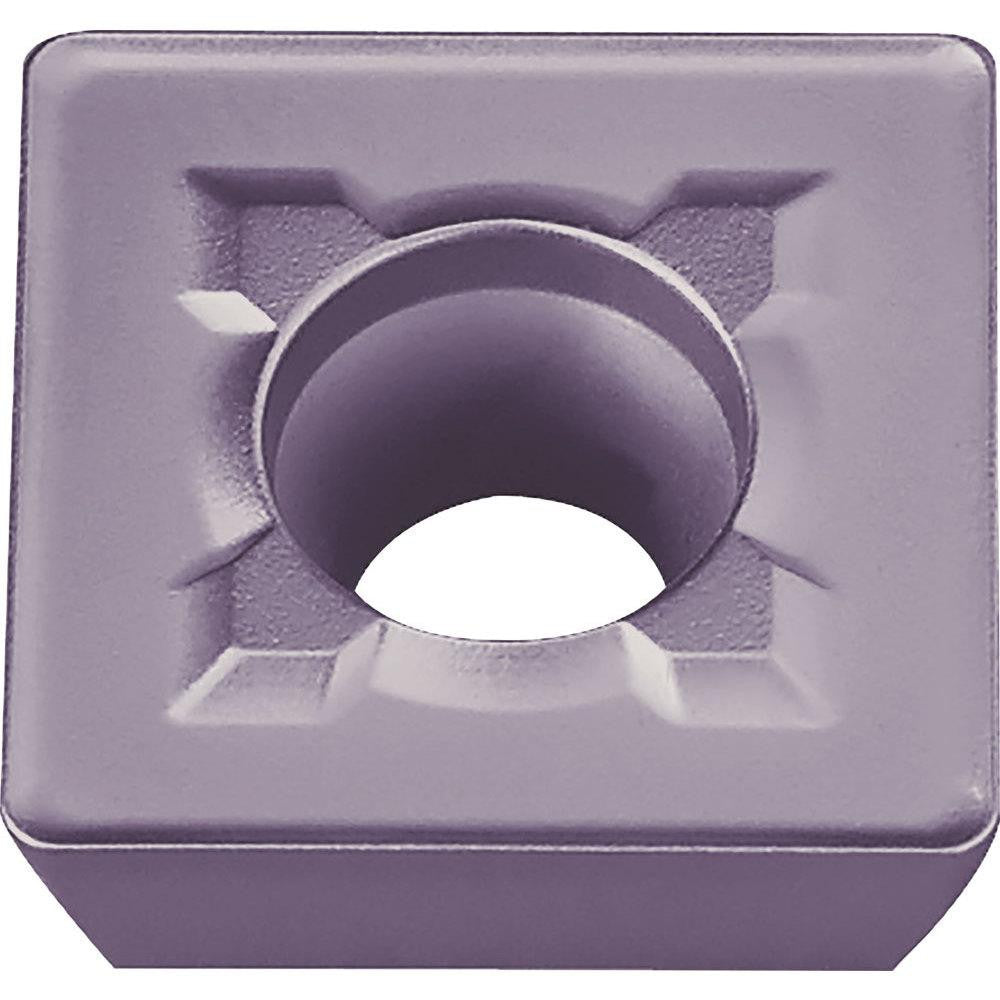

Milling Insert: SDMT060304E-K PR1835, Carbide
Item #: 86322633
Brand: Kyocera
Model #: TLU00066
Product Specifications
| Insert Style | SDMT |
| Insert Size | 221 |
| Insert Material | Carbide |
| Insert Shape | Square |
| Manufacturer Grade | PR1835 |
| Corner Radius (Decimal Inch) | 0.0158 |
| Corner Radius (mm) | 0.40 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
| Thickness (mm) | 3.1800 |
| Coating/Finish | MEGACOAT NANO EX |
| Relief Angle | 15.000 |
| Thickness (Inch) | 1/8 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (mm) | 6.35 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Neutral |
| Series | METS Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Rake | Positive |
| Primary Workpiece Material | Austenitic Stainless Steel; Titanium Alloy; Precipitation Hardened Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Mold Steel; Martensitic Stainless Steel; Alloy Steel; Carbon Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | SDMT221EKPR1835 |
| Iso Code | SDMT060304E-K |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SDMT221EKPR1835 |
| Chip Breaker | E-K |
| Cutting Direction | Neutral |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Width (mm - 2 Decimals) | 6.35 |
| Multi-Use Tool | Yes |
| Country of Origin | Japan |
