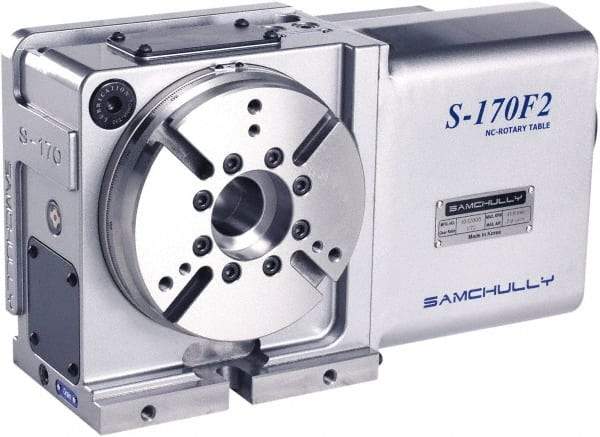

Samchully - 1 Spindle, 175mm Horizontal & Vertical Rotary Table - 160 kg (352 Lb) Max Horiz Load, 140mm Centerline Height, 40mm Through Hole
Item #: 39473491
Brand: Samchully
Model #: S170I1HP
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Indexer Type | Rotary Table |
| Number of Spindles | 1 |
| Collet Compatibility | 5C |
| Maximum RPM | 41.6 |
| Table Diameter (mm) | 175.00 |
| Setting Position | Horizontal; Vertical |
| Maximum Horizontal Load Capacity (Lb.) | 352 |
| Maximum Horizontal Load Capacity (kg) | 160 |
| Maximum Vertical Load Capacity (Lb.) | 176 |
| Maximum Vertical Load Capacity (kg) | 80 |
| Centerline Height (mm) | 140.00 |
| Through Hole Size (mm) | 40.00 |
| Repeatability (sec.) | 4.00 |
| Number of T-Slots | 4 |
| Motor Type | AC Servo |
