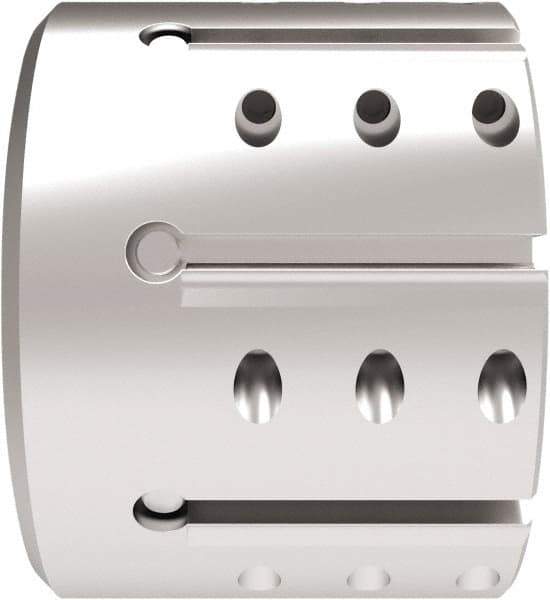

Allied Machine and Engineering - 56.31mm Cut Diam, 38.1mm Max Hole Depth, 22mm Arbor Hole Diam, Internal/External Indexable Thread Mill - Insert Style TN150K, 38.1mm Insert Size, 6 Inserts, Toolholder Style TSR, 57.15mm OAL
Item #: 39423801
Brand: Allied Machine and Engineering
Model #: TSR-2217-6F150M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 56.31 |
| Maximum Hole Depth (mm) | 38.10 |
| Insert Style | TN150K |
| Insert Size (mm) | 38.10 |
| Toolholder Style | TSR |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Length (mm) | 57.15 |
| Number of Threading Inserts | 6 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Number of Flutes | 6 |
| Neck Diameter (mm) | 50.80 |
