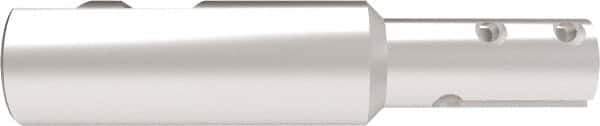

Allied Machine and Engineering - 28.35 (Straight)mm Cut Diam, 38.1mm Max Hole Depth, 25mm Shank Diam, Internal/External Indexable Thread Mill - Insert Style TN150K, 38.1mm Insert Size, 3 Inserts, Toolholder Style TNR, 114.3mm OAL
Item #: 39423793
Brand: Allied Machine and Engineering
Model #: TNR-1116-3F150M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 28.35 (Straight) |
| Maximum Hole Depth (mm) | 38.10 |
| Insert Style | TN150K |
| Insert Size (mm) | 38.10 |
| Toolholder Style | TNR |
| Shank Diameter (mm) | 25.00 |
| Overall Length (mm) | 114.30 |
| Number of Threading Inserts | 3 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Number of Flutes | 3 |
| Neck Diameter (mm) | 20.63 |
