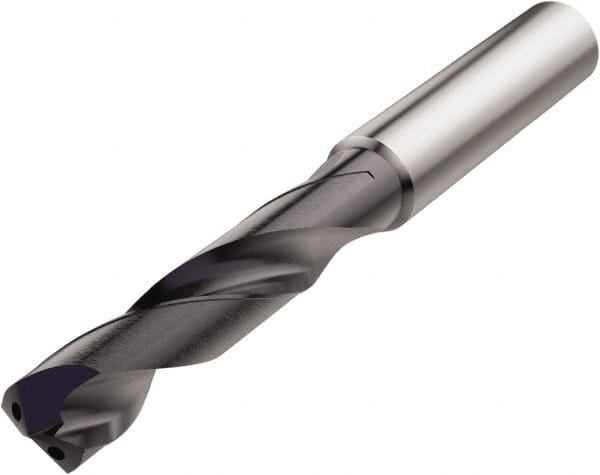

Screw Machine Length Drill Bit: 0.748″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series SD203A
Item #: 39397476
Brand: Seco
Model #: 03046058
Product Specifications
| Drill Bit Size (mm) | 19.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Point Type | Conical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Drill Bit Size (Decimal Inch) | 0.7480 |
| Overall Length (mm) | 131.00 |
| Overall Length (Decimal Inch) | 5.1575 |
| Shank Diameter (mm) | 20.00 |
| Series | SD203A |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 79.00 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 17.00+ |
