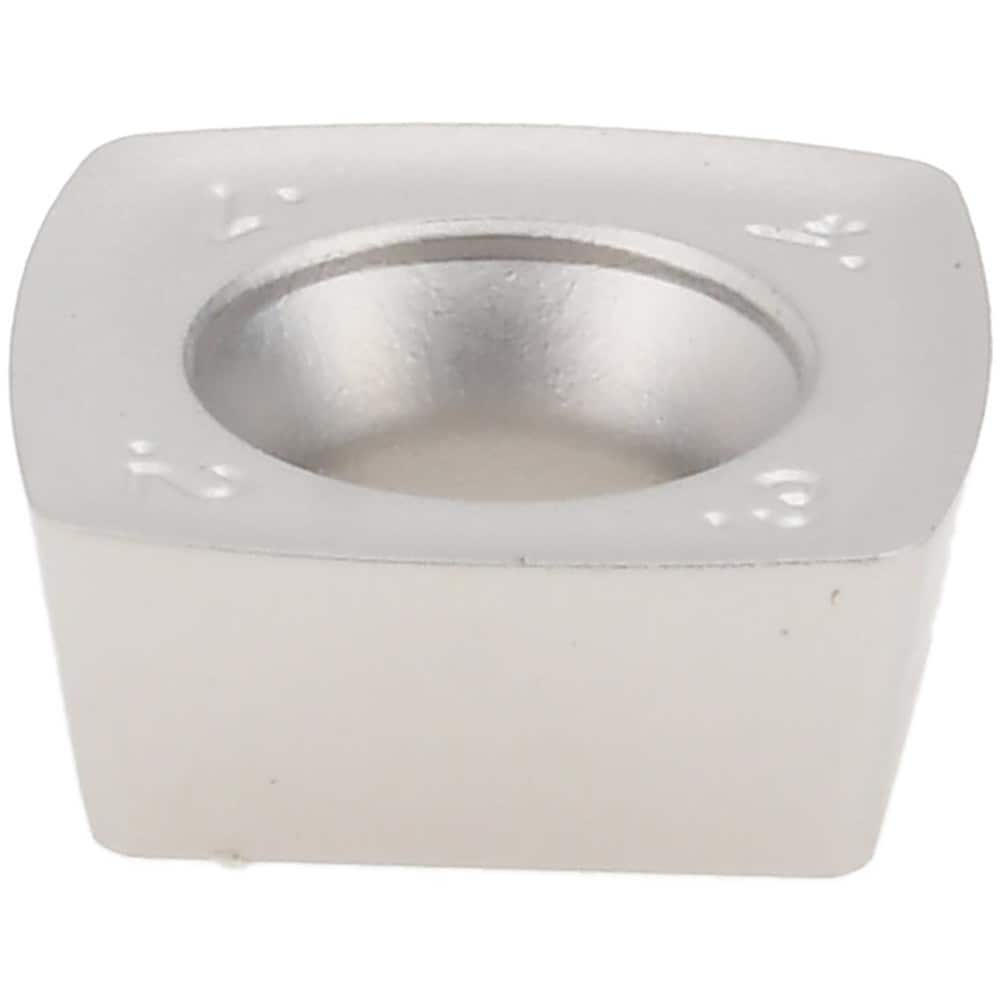

Milling Insert: XDLT10T308ERSCM ACS35, Solid Carbide
Item #: 54029277
Brand: Accupro
Model #: 54029277
Product Specifications
| Insert Style | XDLT |
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | ACS35 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Thickness (mm) | 3.9700 |
| Coating/Finish | CVD |
| Relief Angle | 15.000 |
| Insert Size Code | 10 |
| Inscribed Circle (Decimal Inch) | 0.3898 |
| Inscribed Circle (mm) | 9.90 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Maximum Depth of Cut (mm) | 1.00 |
| Series | CI |
| Rake | Positive |
| Iso Code | XDLT10T308ERSCM |
| Cutter Series Compatibility | XDLT |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Length (mm) | 9.90 |
| Width (Decimal Inch - 4 Decimals) | 0.1732 |
| Width (mm - 2 Decimals) | 4.40 |
| Length (Decimal Inch - 4 Decimals) | 0.3898 |
| Insert Style | XDLT |
| Insert Size | 10 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | ACS35 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Thickness (mm) | 3.9700 |
| Coating/Finish | CVD |
| Relief Angle | 15.000 |
| Insert Size Code | 10 |
| Inscribed Circle (Decimal Inch) | 0.3898 |
| Inscribed Circle (mm) | 9.90 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Maximum Depth of Cut (mm) | 1.00 |
| Series | CI |
| Rake | Positive |
| Iso Code | XDLT10T308ERSCM |
| Cutter Series Compatibility | XDLT |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Single |
| Length (mm) | 9.90 |
| Width (Decimal Inch - 4 Decimals) | 0.1732 |
| Width (mm - 2 Decimals) | 4.40 |
| Length (Decimal Inch - 4 Decimals) | 0.3898 |
| MSC Part # | 54029277 |
| Mfr Part # | 54029277 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
