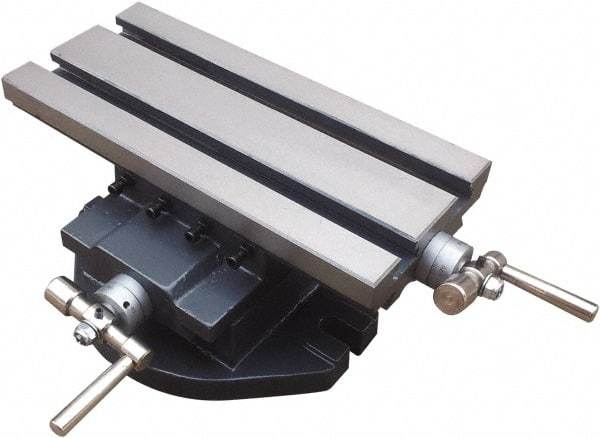

Interstate - 5-1/2" Table Width x 11-13/16" Table Length, 3.94" Cross Travel x 7.09" Longitudinal Travel, Slide Machining Table - 4.84" Overall Height, Two 5/8" Longitudinal T Slots
Item #: 39101183
Brand: Interstate
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Table Width (Inch) | 5-1/2 |
| Table Length (Inch) | 11-13/16 |
| Cross Travel (Decimal Inch) | 3.9400 |
| Longitudinal Travel Length (Decimal Inch) | 7.0900 |
| Overall Height (Decimal Inch) | 4.8400 |
| T-Slot Width (Inch) | 5/8 |
| Number of Longitudinal Table Slots | 2 |
| Dial Graduation (mm) | 0.03 |
| Dial Graduation (Decimal Inch) | 0.0012 |
| Travel per Dial Revolution (mm) | 3.00 |
