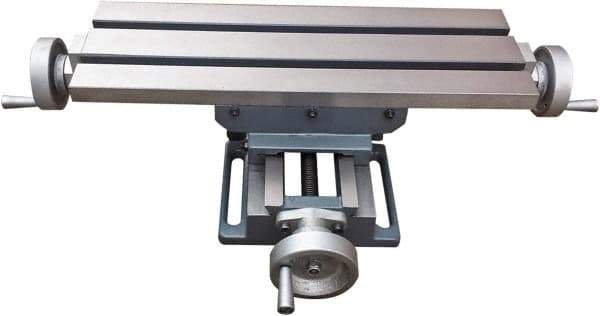

Interstate - 6-1/8" Table Width x 18-5/8" Table Length, 9" Cross Travel x 13" Longitudinal Travel, Slide Machining Table - 5.28" Overall Height, Two 1/2" Longitudinal T Slots
Item #: 39101175
Brand: Interstate
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Table Width (Inch) | 6-1/8 |
| Table Length (Inch) | 18-5/8 |
| Cross Travel (Decimal Inch) | 9.0000 |
| Longitudinal Travel Length (Decimal Inch) | 13.0000 |
| Overall Height (Decimal Inch) | 5.2800 |
| T-Slot Width (Inch) | 1/2 |
| Number of Longitudinal Table Slots | 2 |
| Base Length (Inch) | 12 |
| Base Width (Inch) | 8-1/4 |
| Dial Graduation (mm) | 0.03 |
| Dial Graduation (Decimal Inch) | 0.0100 |
| Travel per Dial Revolution (mm) | 2.54 |
