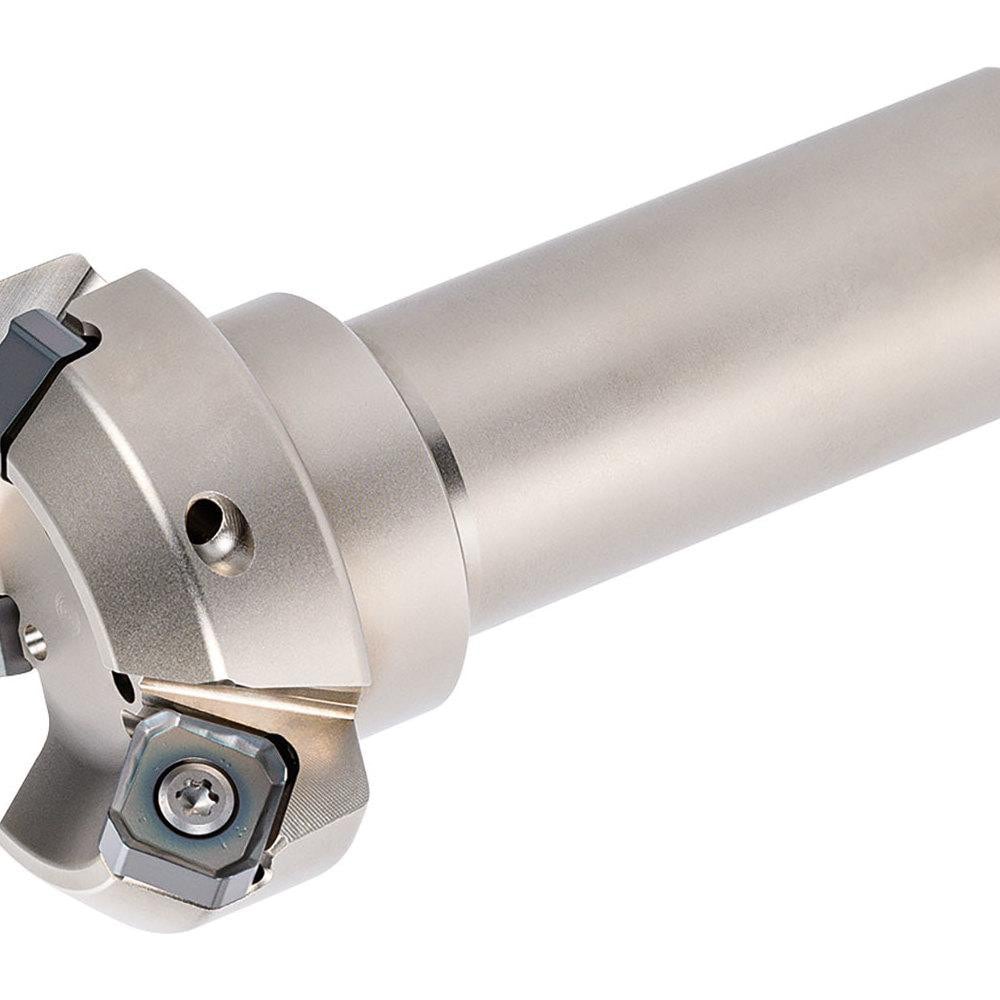

Indexable Chamfer & Angle End Mills; Minimum Cutting Diameter (Decimal Inch): 1.9685; Cutting Diameter (mm): 50.00; Minimum Cutting Diameter (mm): 50.00; Maximum Cutting Diameter (mm): 63.00; Maximum Cutting Diameter (Decimal Inch): 2.4803
Item #: 68881929
Brand: Kyocera
Model #: THN08806
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.9685 |
| Cutting Diameter (mm) | 50.00 |
| Minimum Cutting Diameter (mm) | 50.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (Decimal Inch) | 2.4803 |
| Lead Angle | 45 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Taper Size | None |
| Number Of Cutter Inserts | 3 |
| Cutting Direction | Right Hand |
| Insert Style | MB45 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 4.7244 |
| Overall Length (mm) | 120.0000 |
| Overall Height (Decimal Inch) | 0.0000 |
| Series | MB45 45 Deg Lead Milling |
| Toolholder Style | MB45 |
| Functional Length (mm) | 120.00 |
| Functional Length (Decimal Inch) | 4.7244 |
| Maximum Body Diameter (mm) | 63.00 |
| Maximum RPM | 11400.000 |
| Tool Application | Chamfering; Facing |
| Tool Performance | High Performance |
| Standards | GR99 |
| Head Length (Decimal Inch) | 4.7244 |
| Head Length (mm) | 40.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Shank Length (mm) | 80.000 |
| Complete Insert Compatibility | SNMU1406?, SNEU1406? |
| UNSPSC Code | 23242106 |
| ISO Number | MB45-50S32-14T3C |
| Rake | Negative (Axial); Negative (Radial) |
| Number Of Flutes | 3 |
| Width (Decimal Inch - 4 Decimals) | 2.4803 |
| End Mill Material | Steel |
| Coolant Through | Yes |
| Radial Rake Angle (Degrees) | -12 |
| Shank Type | Cylindrical |
| Minimum Cutting Diameter (Decimal Inch) | 1.9685 |
| Cutting Diameter (mm) | 50.00 |
| Minimum Cutting Diameter (mm) | 50.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (Decimal Inch) | 2.4803 |
| Lead Angle | 45 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Shank Taper Size | None |
| Number Of Cutter Inserts | 3 |
| Cutting Direction | Right Hand |
| Insert Style | MB45 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 4.7244 |
| Overall Length (mm) | 120.0000 |
| Overall Height (Decimal Inch) | 0.0000 |
| Series | MB45 45 Deg Lead Milling |
| Toolholder Style | MB45 |
| Functional Length (mm) | 120.00 |
| Functional Length (Decimal Inch) | 4.7244 |
| Maximum Body Diameter (mm) | 63.00 |
| Maximum RPM | 11400.000 |
| Tool Application | Chamfering; Facing |
| Tool Performance | High Performance |
| Standards | GR99 |
| Head Length (Decimal Inch) | 4.7244 |
| Head Length (mm) | 40.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Shank Length (mm) | 80.000 |
| Complete Insert Compatibility | SNMU1406?, SNEU1406? |
| UNSPSC Code | 23242106 |
| ISO Number | MB45-50S32-14T3C |
| Rake | Negative (Axial); Negative (Radial) |
| Number Of Flutes | 3 |
| Width (Decimal Inch - 4 Decimals) | 2.4803 |
| End Mill Material | Steel |
| Coolant Through | Yes |
| Radial Rake Angle (Degrees) | -12 |
| Shank Type | Cylindrical |
| MSC Part # | 68881929 |
| Mfr Part # | THN08806 |
| Country of Origin Country of Origin is subject to change | China |
