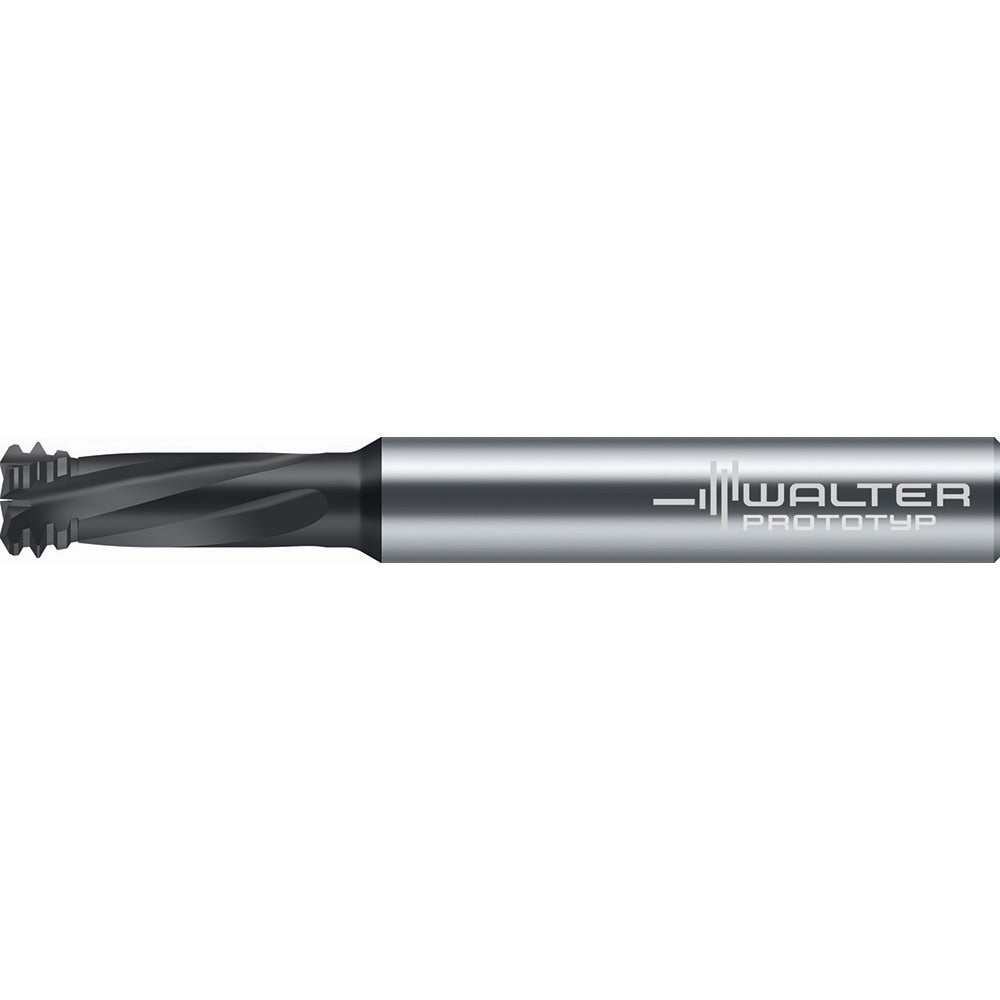

Helical Flute Thread Mill: 5/16-18, Internal, 4 Flute, 6.0000 mm Shank Dia, Solid Carbide
Item #: 55399844
Brand: Walter-Prototyp
Model #: 8378431
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 5/16-18 |
| Thread Type | Internal |
| Shank Diameter (mm) | 6.0000 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Cutting Diameter (mm) | 5.90 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.2323 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1724 |
| Length of Cut (mm) | 4.3800 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.000 |
| Overall Length (mm) | 57.0000 |
| Overall Length (Decimal Inch) | 2.2441 |
| Thread Standard | UNC |
| Flute Direction | Left Hand |
| Series | TC645-UNC-A1D |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | Yes |
| Teeth Per Inch | 18 |
| UNSPSC Code | 23242117 |
