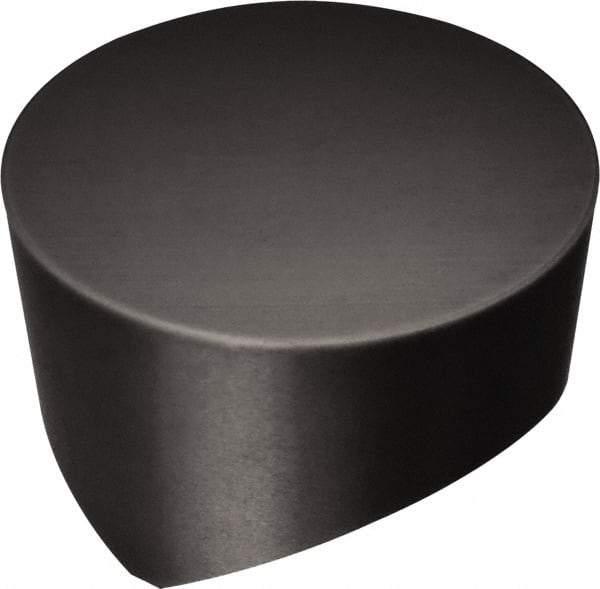

Sandvik Coromant - RCGX0606 Grade 6220 Ceramic Turning Insert - Uncoated, Round, 6.35mm Inscr Circle, 6.35mm Thick, 3.175mm Corner Radius
Item #: 38733374
Brand: Sandvik Coromant
Model #: 7413931
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 0606 |
| Material | Ceramic |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Corner Radius (mm) | 3.175 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Manufacturer's Grade | 6220 |
| Coating | Uncoated |
| ISO Number | RCGX060600T01020 6220 |
| Relief Angle | 7 |
| Manufacturers Catalog Number | RCGX24T0320 6220 |
| Primary Workpiece Material | S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Shape | Round |
