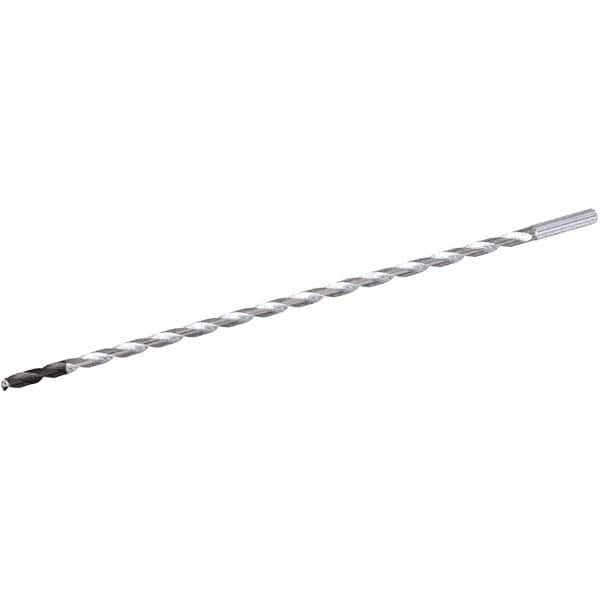

Extra Length Drill Bit: 0.2188″ Dia, 135 °, Solid Carbide AlCrN Finish, 9.4882″ Flute Length, 11.5354″ OAL, Straight-Cylindrical Shank, Series B275HPG
Item #: 38590071
Brand: Kennametal
Model #: 6349009
Product Specifications
| Overall Length (mm) | 293.00 |
| Flute Length (mm) | 241.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlCrN |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Series | B275HPG |
| Cutting Direction | Right Hand |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.2188 |
| Drill Point Length (mm) | 1.03 |
| Drill Point Length (Decimal Inch) | 0.0404 |
| Overall Length (Decimal Inch) | 11.5354 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Flute Length (Decimal Inch) | 9.4882 |
| Flute By Diameter Ratio | 40xD |
| Maximum Drilling Depth (Decimal Inch) | 8.9764 |
| Maximum Drilling Depth (mm) | 228.00 |
| Material Grade | KCPK20 |
