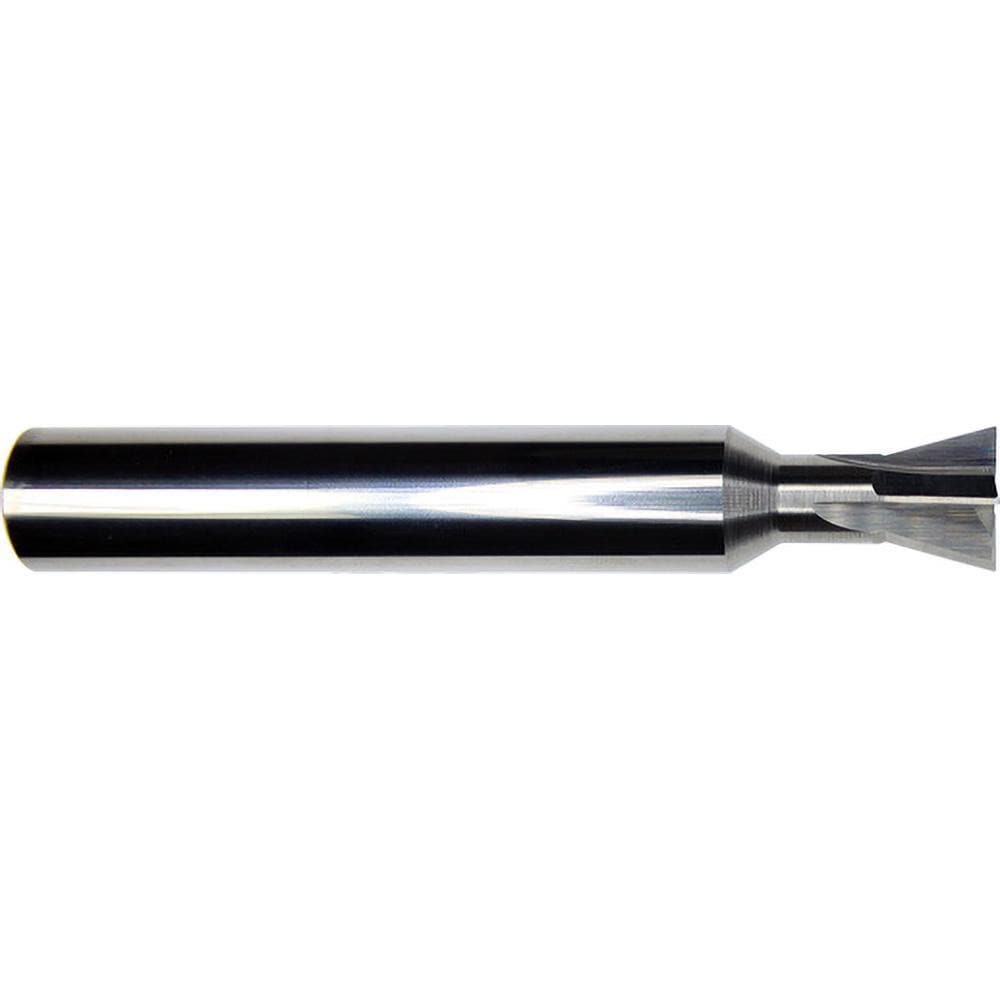

Dovetail Cutters; Included Angle: 30; Cutter Diameter (Inch): 1/2; Cutter Diameter (Decimal Inch): 0.5000; Cutting Width (Decimal Inch): 0.3200
Item #: 53870374
Brand: Internal Tool
Model #: 86-2580
Product Specifications
| Included Angle | 30 |
| Cutter Diameter (Inch) | 1/2 |
| Cutter Diameter (Decimal Inch) | 0.5000 |
| Cutting Width (Decimal Inch) | 0.3200 |
| Cutter Material | Solid Carbide |
| Weldon Flat | No |
| Shank Diameter (Inch) | 1/2 |
| Minimum Cutter Diameter (Decimal Inch) | 0.3200 |
| Coating/Finish | Uncoated |
| Neck Length (Decimal Inch) | 0.2500 |
| Neck Diameter (Decimal Inch) | 0.3200 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutting Direction | Right Hand |
| Cutter Material Grade | Micrograin |
| Series | 86 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Maximum Cutter Diameter (Decimal Inch) | 0.5000 |
| Number Of Teeth | 6 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Length (Decimal Inch) | 2.4300 |
| UNSPSC Code | 23241632 |
| Included Angle | 30 |
| Cutter Diameter (Inch) | 1/2 |
| Cutter Diameter (Decimal Inch) | 0.5000 |
| Cutting Width (Decimal Inch) | 0.3200 |
| Cutter Material | Solid Carbide |
| Weldon Flat | No |
| Shank Diameter (Inch) | 1/2 |
| Minimum Cutter Diameter (Decimal Inch) | 0.3200 |
| Coating/Finish | Uncoated |
| Neck Length (Decimal Inch) | 0.2500 |
| Neck Diameter (Decimal Inch) | 0.3200 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutting Direction | Right Hand |
| Cutter Material Grade | Micrograin |
| Series | 86 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Maximum Cutter Diameter (Decimal Inch) | 0.5000 |
| Number Of Teeth | 6 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Length (Decimal Inch) | 2.4300 |
| UNSPSC Code | 23241632 |
| MSC Part # | 53870374 |
| Mfr Part # | 86-2580 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
