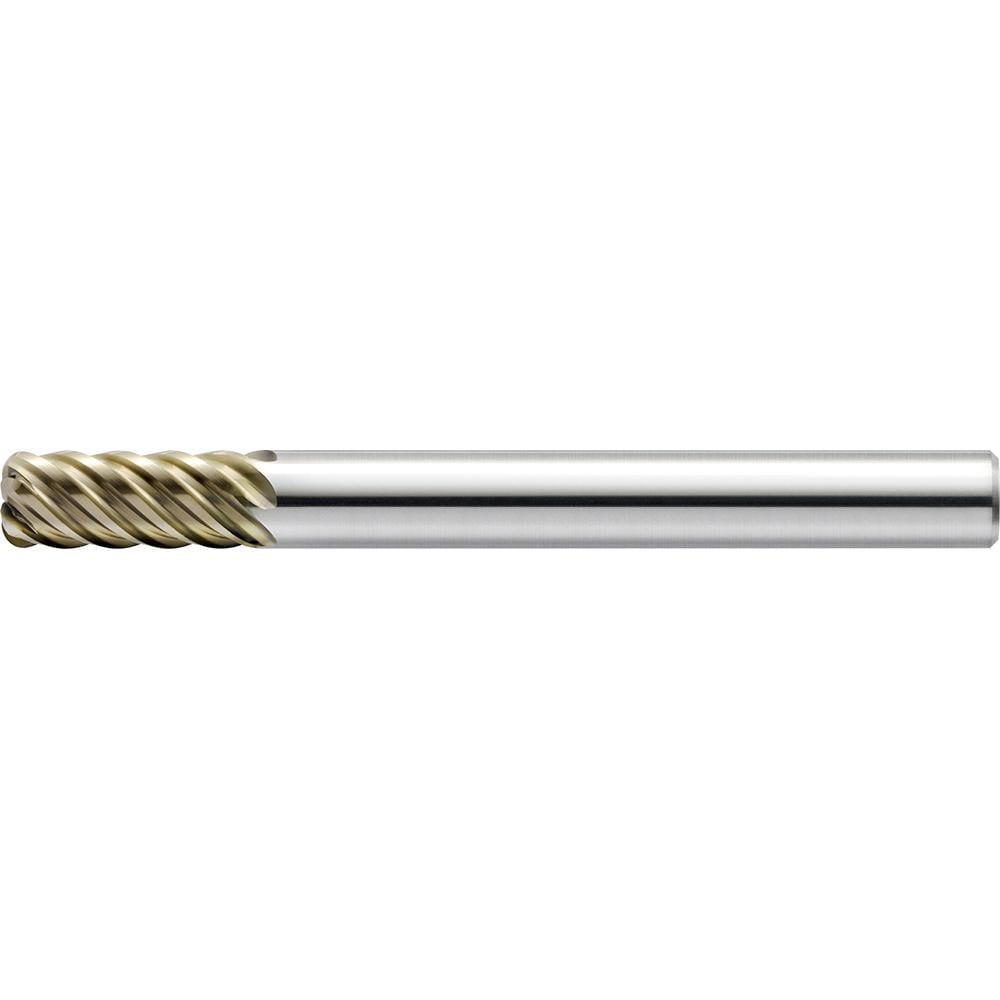

Corner Radius End Mill: 5.00 mm Dia, 12.50 mm LOC, 45 deg Helix, Hardmax Coated, Corner Radius End, Centercutting Series HMERS
Item #: 09469834
Brand: US Union Tool
Model #: 2151012
Product Specifications
| Mill Diameter (mm) | 5.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 12.50 |
| End Mill Material | Solid Carbide |
| Coating/Finish | Hardmax |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.50 |
| Overall Length (mm) | 60 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Length Type | Long |
| Extended Reach | No |
| Shank Diameter (mm) | 6 |
| Mill Diameter Tolerance | -0.02 |
| Shank Diameter Tolerance | -0.005 |
| UNSPSC Code | 27112803 |
| Material Grade | Super MG |
| Series | HMERS |
