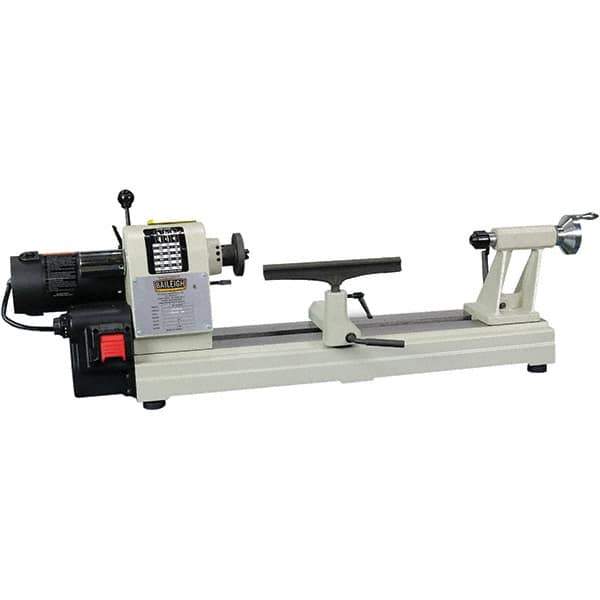

Baileigh - 12" Swing, 18" Distance Between Center, Cast Iron Woodworking Lathe - 2MT Head/Tailstock, 1-1/2" Spindle Hole, 3" Face Plate, 300 to 3,600 RPM, 2" Quill Travel
Item #: 38444741
Brand: Baileigh
Model #: 1013575
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Swing (Inch) | 12 |
| Distance Between Centers (mm) | 457.20 |
| Distance Between Centers (Inch) | 18 |
| Distance Between Centers (Decimal Inch) | 18.0000 |
| Swing Over Tool Rest Base (Inch) | 12 |
| Swing Over Tool Rest Base (Decimal Inch) | 12.0000 |
| Face Plate Diameter (Inch) | 3 |
| Face Plate Diameter (Decimal Inch) | 3.0000 |
| Spindle Nose Designation | 2MT |
| Tool Rest Size (Inch) | 10 |
| Headstock Taper Size | 2MT |
| Tailstock Taper Size | 2MT |
| Maximum Spindle Speed (RPM) | 3600.00 |
| Minimum Spindle Speed (RPM) | 300.00 |
| Headstock Spindle Hole Size (Inch) | 1-1/2 |
| Tailstock Quill Travel (Inch) | 2 |
| Bed Construction | Cast Iron |
| Horsepower (HP) | 0.75 |
| Voltage | 110 |
| Phase | 1 |
| Overall Depth (Inch) | 14 |
| Overall Depth (Decimal Inch) | 14.0000 |
| Overall Height (Inch) | 12 |
