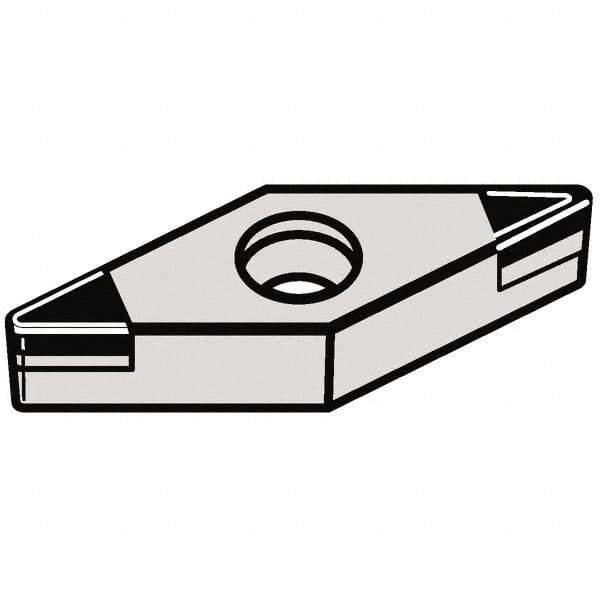

Kennametal - VBGW221 MT Grade KBH10 CBN Turning Insert - 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 38327631
Brand: Kennametal
Model #: 6296037
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | VBGW |
| Insert Size | 221 |
| Material | CBN |
| Length (Decimal Inch) | 0.4360 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KBH10 |
| Chip Breaker | MT |
| Insert Length (Decimal Inch) | 0.4360 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | VBGW110304S01015MT |
| Relief Angle | 5 |
| Manufacturers Catalog Number | VBGW221S0415MT |
| Included Angle | 35 |
| Series | Kenloc |
| Insert Holding Method | Screw |
| Shape | Diamond |
