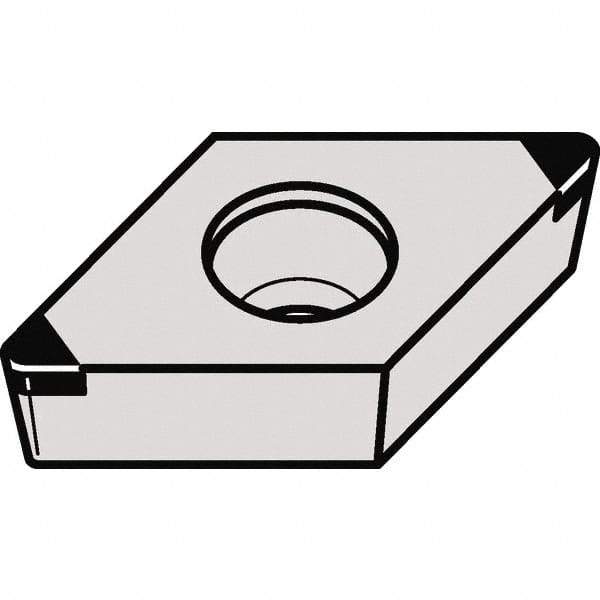

Kennametal - DCGW32.52 FWMT Grade KBH10 CBN Turning Insert - 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 38327300
Brand: Kennametal
Model #: 6296010
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | DCGW |
| Insert Size | 32.52 |
| Material | CBN |
| Length (Decimal Inch) | 0.4580 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1562 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | KBH10 |
| Chip Breaker | FWMT |
| Insert Length (Decimal Inch) | 0.4580 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | DCGW11T308S01015FWMT |
| Lead Angle | -3.000 |
| Relief Angle | 7 |
| Manufacturers Catalog Number | DCGW3252S0415FWMT |
| Included Angle | 55 |
| Series | Kenloc |
| Insert Holding Method | Screw |
| Shape | Diamond |
