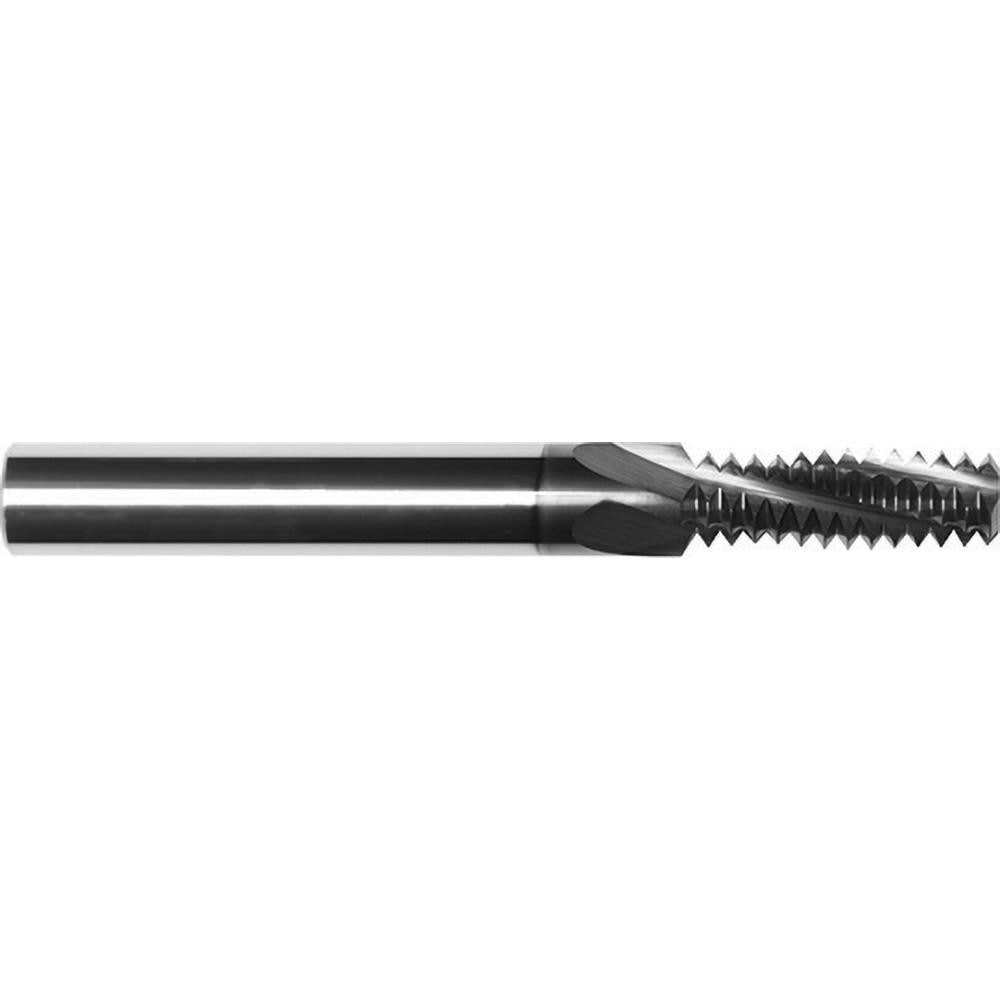

Helical Flute Thread Mill: 7/8-9, Internal & External, 5 Flute, 0.6250" Shank Dia, Solid Carbide
Item #: 50110071
Brand: Internal Tool
Model #: 89-1305
Product Specifications
| Material | Solid Carbide |
| Thread Size (Inch) | 7/8-9 |
| Thread Type | Internal; External |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Type | Straight-Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.6200 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Minimum Nominal Diameter (Inch) | 0.6200 |
| Shank Length (Decimal Inch) | 2.2500 |
| Shank Length (Inch) | 2-1/4 |
| Overall Length (Decimal Inch) | 3.5000 |
| Thread Standard | UNC |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Series | 89 |
| Number Of Flutes | 5 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 1.2500 |
| Teeth Per Inch | 9 |
| UNSPSC Code | 23242117 |
