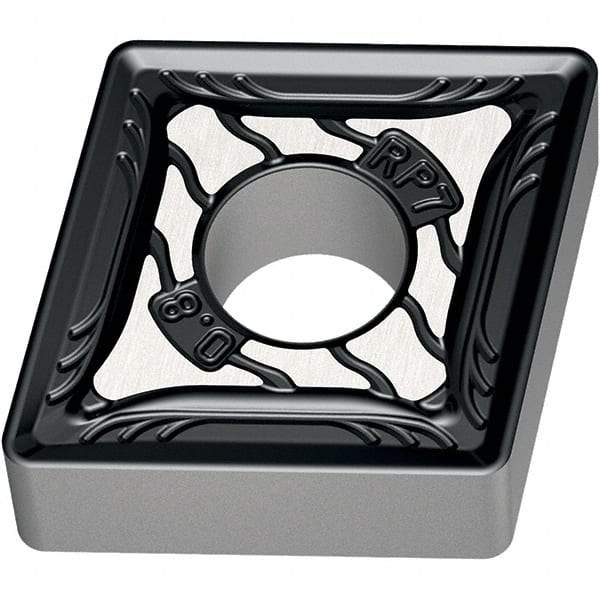

Walter - CNMG866 RP7 Grade WKP30S Carbide Turning Insert - 80° Diamond, 1" Inscr Circle, 3/8" Thick, 3/32" Corner Radius
Item #: 38187183
Brand: Walter
Model #: 6930010
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 866 |
| Material | Carbide |
| Length (mm) | 25.79 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (mm) | 2.40 |
| Corner Radius (Decimal Inch) | 0.0938 |
| Manufacturer's Grade | WKP30S |
| Chip Breaker | RP7 |
| Hole Diameter (mm) | 9.12 |
| Hole Diameter (Decimal Inch) | 0.3590 |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| FullRadius | No |
| MultiUseTool | Yes |
| Shape | Diamond |
