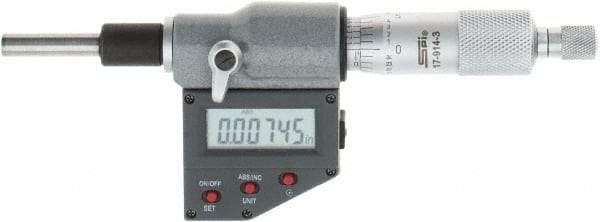

SPI - 0 to 25mm Range, 6.5mm Spindle Diameter, 28.5mm Spindle Length, 160mm OAL, Electronic Micrometer Head - 0.00005" Resolution, 0.0001" Accuracy, Carbide Measuring Face, Data Output
Item #: 38171906
Brand: SPI
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Measurement (Inch) | 0 |
| Minimum Measurement (mm) | 0.00 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (Inch) | 1 |
| Maximum Measurement (Decimal Inch) | 1.0000 |
| Maximum Measurement (mm) | 25.00 |
| Thimble Diameter (mm) | 18.00 |
| Spindle Diameter (mm) | 6.50 |
| Spindle Diameter (Decimal Inch) | 0.2600 |
| Spindle Length (mm) | 28.50 |
| Spindle Length (Decimal Inch) | 1.1200 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.3100 |
| Traceability Certification Included | NIST |
| Resolution (mm) | 0.0010 |
| Resolution (Decimal Inch) | 0.000050 |
| Accuracy (mm) | 0.0030 |
| Accuracy (Decimal Inch) | 0.0001 |
| Water Resistance Rating | IP65 |
| Rotating Spindle | Yes |
| Clamp Nut Supplied | No |
| Data Output | Yes |
| Measuring Face Material | Carbide |
| Battery Type | LR44 |
