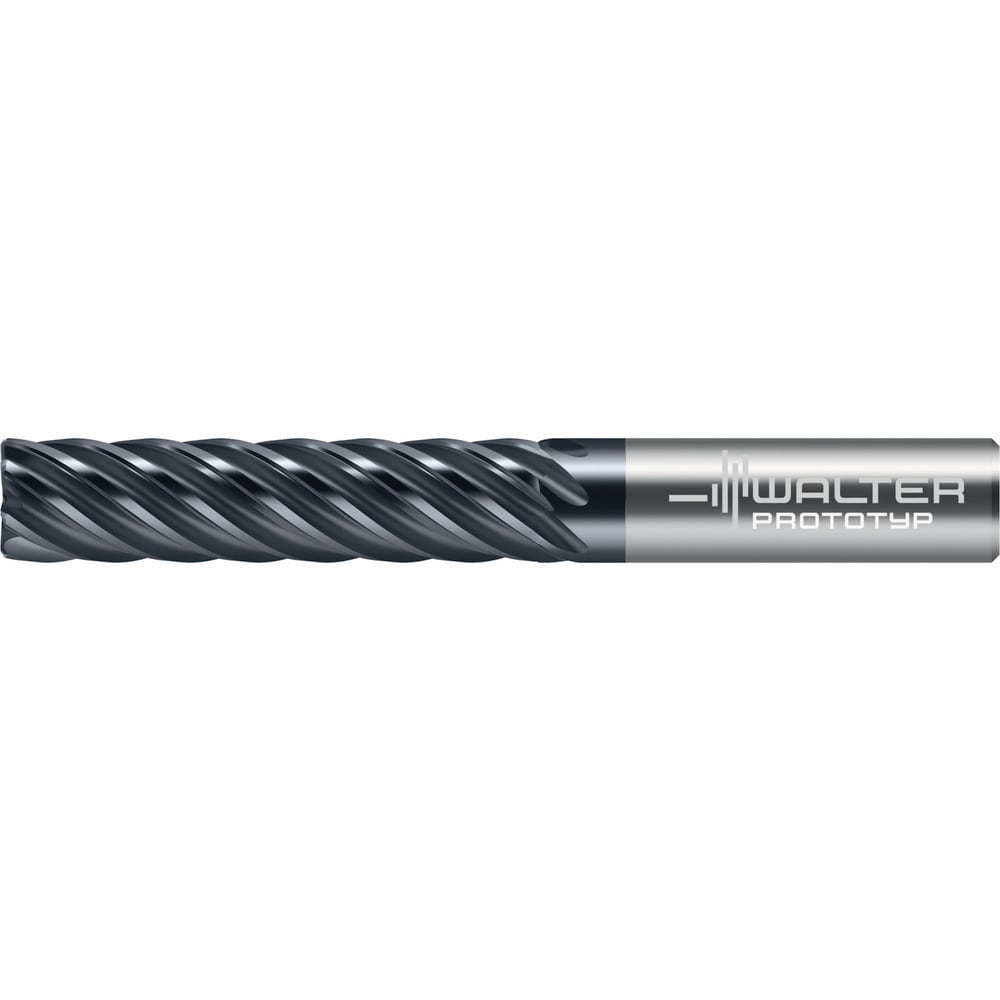

Corner Radius End Mill: 3/8" Dia, 1-1/4" LOC, 0.76 mm Radius, 7 Flute, Solid Carbide
Item #: 06795546
Brand: Walter-Prototyp
Model #: 8203476
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.375 |
| Number Of Flutes | 7 |
| Length of Cut (mm) | 31.7500 |
| Length of Cut (Inch) | 1-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | nACRo |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.76 |
| Coolant Through | No |
| Overall Length (Decimal Inch) | 3.0000 |
| Chipbreaker | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
| Flute Type | Helical |
| Extended Reach | No |
| Shank Type | Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Reach Length (Decimal Inch) | 1.4370 |
| Reach Length (mm) | 36.50 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Superalloys & Titanium |
| UNSPSC Code | 23241614 |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Series | MD177.A-R |
| Proprietary Coating Designation | WJ30EN |
| Manufacturers Catalog Number | MD177.9.53A7L076J-WJ30EN |
