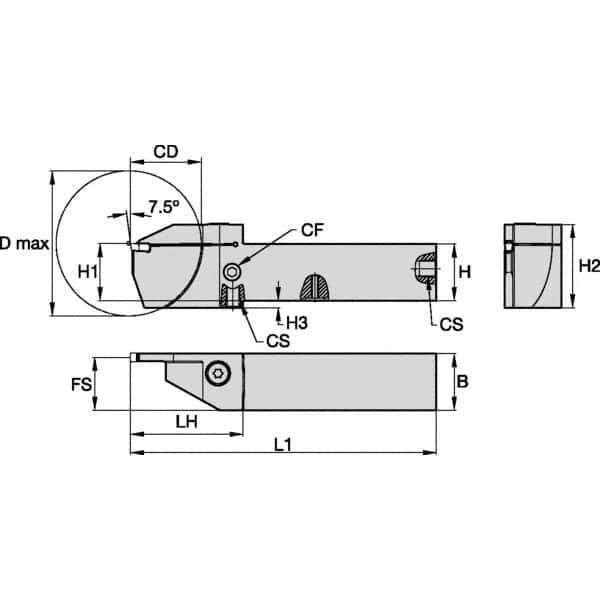

Kennametal - External Thread, 16mm Max Cut of Depth, 1.6mm Min Groove Width, 125mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 12mm Shank Height x 12mm Shank Width, EG0160M1FP02 Insert Style, EVSC Toolholder Style, Series Beyond Evolution
Item #: 37964699
Brand: Kennametal
Model #: 6179758
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Minimum Groove Width (mm) | 1.60 |
| Maximum Groove Width (mm) | 1.60 |
| Overall Length (mm) | 125.00 |
| Series | Beyond Evolution |
| Toolholder Style | EVSC |
| Insert Compatibility | EG0160M1FP02 |
| Shank Height (mm) | 12.00 |
| Shank Width/Diameter (mm) | 12.00 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Head Height (mm) | 23.00 |
| Head Length (mm) | 31.00 |
| Shank Length (mm) | 94.00 |
