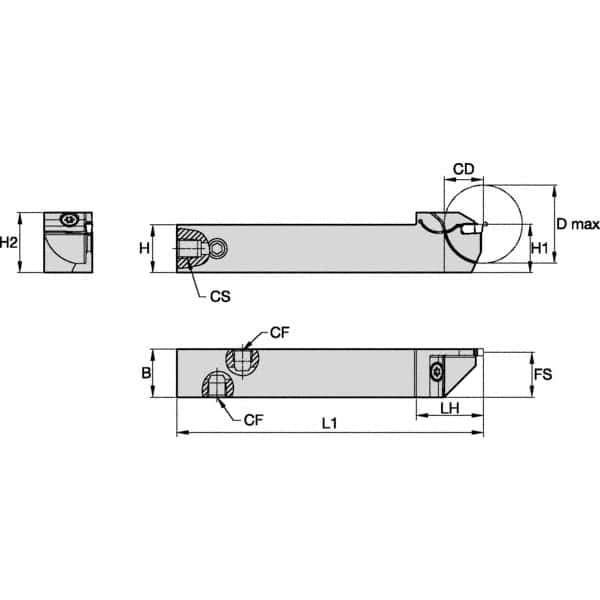

Kennametal - External Thread, 13mm Max Cut of Depth, 1.4mm Min Groove Width, 5" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1/2" Shank Height x 1/2" Shank Width, EG0140M1BP02 Insert Style, EVSC Toolholder Style, Series Beyond Evolution
Item #: 37963956
Brand: Kennametal
Model #: 6180120
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 13.00 |
| Minimum Groove Width (mm) | 1.40 |
| Maximum Groove Width (mm) | 1.40 |
| Overall Length (Inch) | 5 |
| Series | Beyond Evolution |
| Toolholder Style | EVSC |
| Insert Compatibility | EG0140M1BP02 |
| Shank Height (Inch) | 1/2 |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Head Height (mm) | 16.70 |
| Head Length (mm) | 23.50 |
| Shank Length (mm) | 90.80 |
