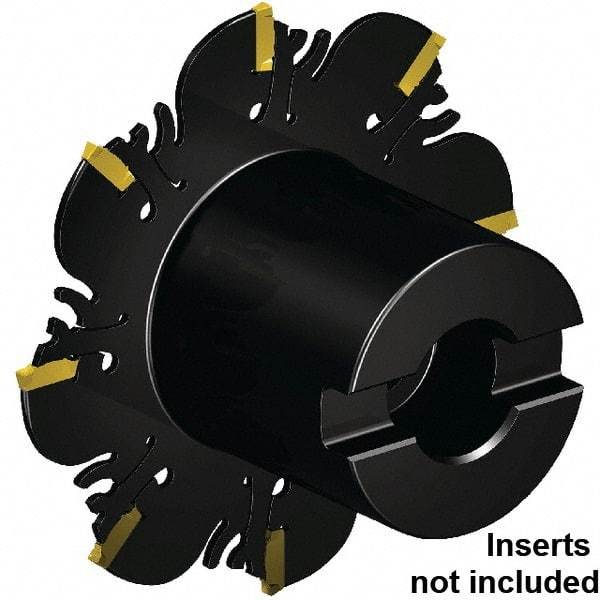

Kennametal - Shell Mount Connection, 0.106" Cutting Width, 27.78mm Depth of Cut, 5" Cutter Diam, 1-1/4" Hole DIam, 8 Tooth Indexable Slotting Cutter - 1-1/4" Shank Diam, FDA Toolholder, XCP27... Insert, Right Hand Cutting Direction
Item #: 37928066
Brand: Kennametal
Model #: 5614911
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 2.70 |
| Cutting Width (Decimal Inch) | 0.1060 |
| Maximum Depth of Cut (mm) | 27.78 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (Inch) | 1-1/4 |
| Shank Diameter (Inch) | 1 1/4 |
| Number of Teeth | 8 |
| Toolholder Style | FDA |
| Series | KNS |
| Insert Style | XCP27... |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Maximum RPM | 640 |
| Maximum Cutting Width (mm) | 4.00 |
| Hub Diameter (Inch) | 2-3/4 |
