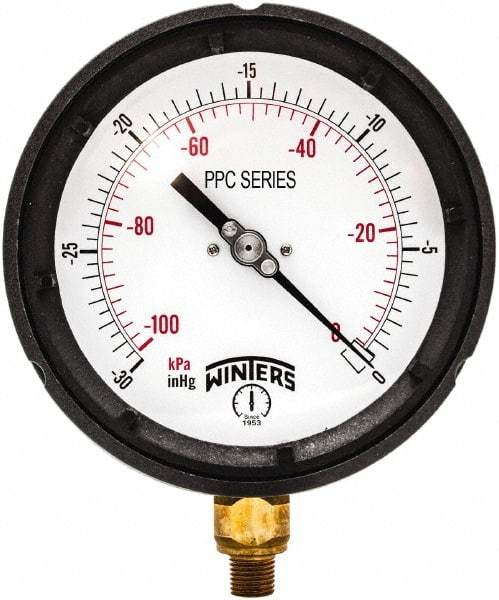

Winters - 4-1/2" Dial, 1/4 Thread, 30-0 Hg VAC Scale Range, Pressure Gauge - Bottom Connection Mount, Accurate to ±0.5% of Scale
Item #: 37838810
Brand: Winters
Model #: 5080SG950957SF.
Exact Tooling IR#: 04
Features and Benefits
Analog dials resemble a clock face, with a needle to indicate the pressure.
| Product Specifications | |
|---|---|
| Type | Process Gauges |
| Scale Measurement Ranges | 30-0 Hg VAC |
| Dial Diameter (Inch) | 4-1/2 |
| Connection / Mount | Bottom |
| Accuracy (%) | ±0.5% |
| Type of Liquid Filler | No-Fill |
| Case Material | Phenolic |
| Dial Type | Analog |
| Thread Size (Inch) | 1/4 |
| Thread Type | NPT |
| Wetted Parts Material | Stainless Steel |
| Model Number | PPC |
| Bourdon Tube | Bronze |
| Display Ranges | 30-0 Hg VAC/kPa |
| Color | Black |
| Additional Information | w/Safety Glass Lens; w/Flushing Connection |
