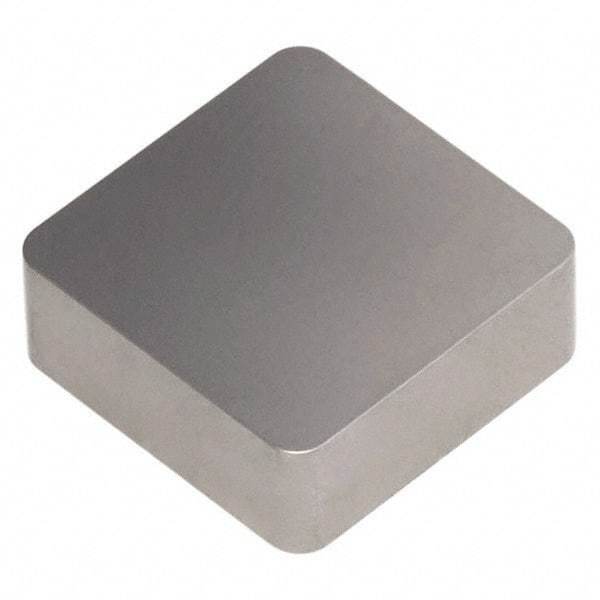

Seco - SNMA644 Flat Top Grade TK0501 Carbide Turning Insert - Ti(C/N)/Al2O3/Cr Finish, 90° Square, 3/4" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 37817814
Brand: Seco
Model #: 46706
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMA |
| Insert Size | 644 |
| Material | Carbide |
| Length (Inch) | 3/4 |
| Length (Decimal Inch) | 0.7500 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | TK0501 |
| Coating | Ti(C/N)/Al2O3/Cr |
| Material Grade | K10 |
| Chip Breaker | Flat Top |
| Insert Length (Decimal Inch) | 0.7500 |
| Hole Diameter (mm) | 7.92 |
| Hole Diameter (Decimal Inch) | 0.3118 |
| ISO Number | SNMA190616 |
| Lead Angle | 75.000 |
| Rake | Negative |
| Rake Angle | 0 |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Primary Workpiece Material | K |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Honed |
| FullRadius | Yes |
| MultiUseTool | Yes |
| Shape | Square |
