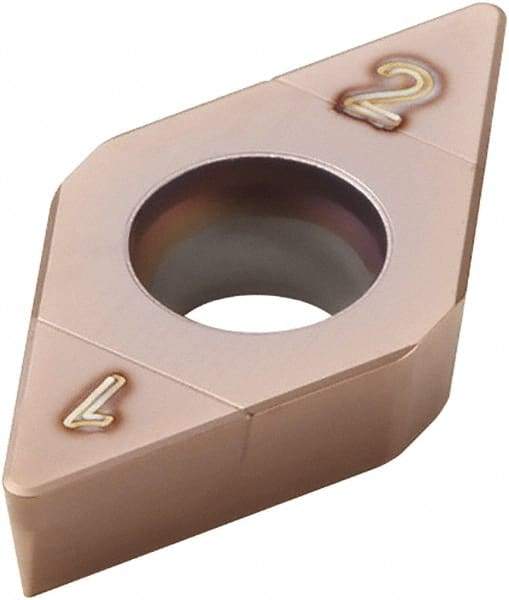

Seco - DCGW32.51 - Grade CH2540 PCBN Turning Insert - TiSiN Finish, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 37746609
Brand: Seco
Model #: 61035
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGW |
| Insert Size | 32.51 |
| Material | PCBN |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | CH2540 |
| Coating | TiSiN |
| Material Grade | H25 |
| Hole Diameter (mm) | 4.50 |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Rake | Positive |
| Relief Angle | 7 |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Insert Hand | Neutral |
| Series | Secomax |
| Maximum Depth of Cut (mm) | 3.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.1260 |
| Insert Holding Method | Screw |
| Cutting Edge Style | T-Land |
| FullRadius | No |
| Shape | Diamond |
