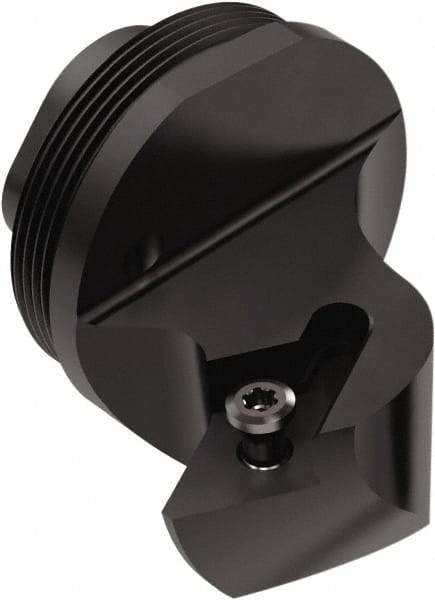

Seco - SDXNL, Left Hand Cut, 62.5° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 25mm OAL, DN..1104.. Insert Compatibility, Series GL
Item #: 37744083
Brand: Seco
Model #: 48911
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SDXNL |
| Rake | Negative |
| Rake Angle | 0 |
| Series | GL |
| Lead Angle | 62.5 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 25.00 |
| Overall Length (Decimal Inch) | 0.9843 |
| Insert Compatibility | DN..1104.. |
| Multi-Use Tool | No |
| Multi-Use Application | Turning |
| Insert Holding Method | Hole & Top Clamp |
| Back of Bar to Cutting Edge (mm) | 9.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3543 |
| Center to Cutting Edge (Decimal Inch) | 0.9843 |
| Insert Inscribed Circle (Inch) | 1/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.1250 |
| Insert Width (mm) | 4.76 |
| Insert Width (Inch) | 3/16 |
| Insert Width (Decimal Inch) | 0.1875 |
| Toolholder Material | Steel |
