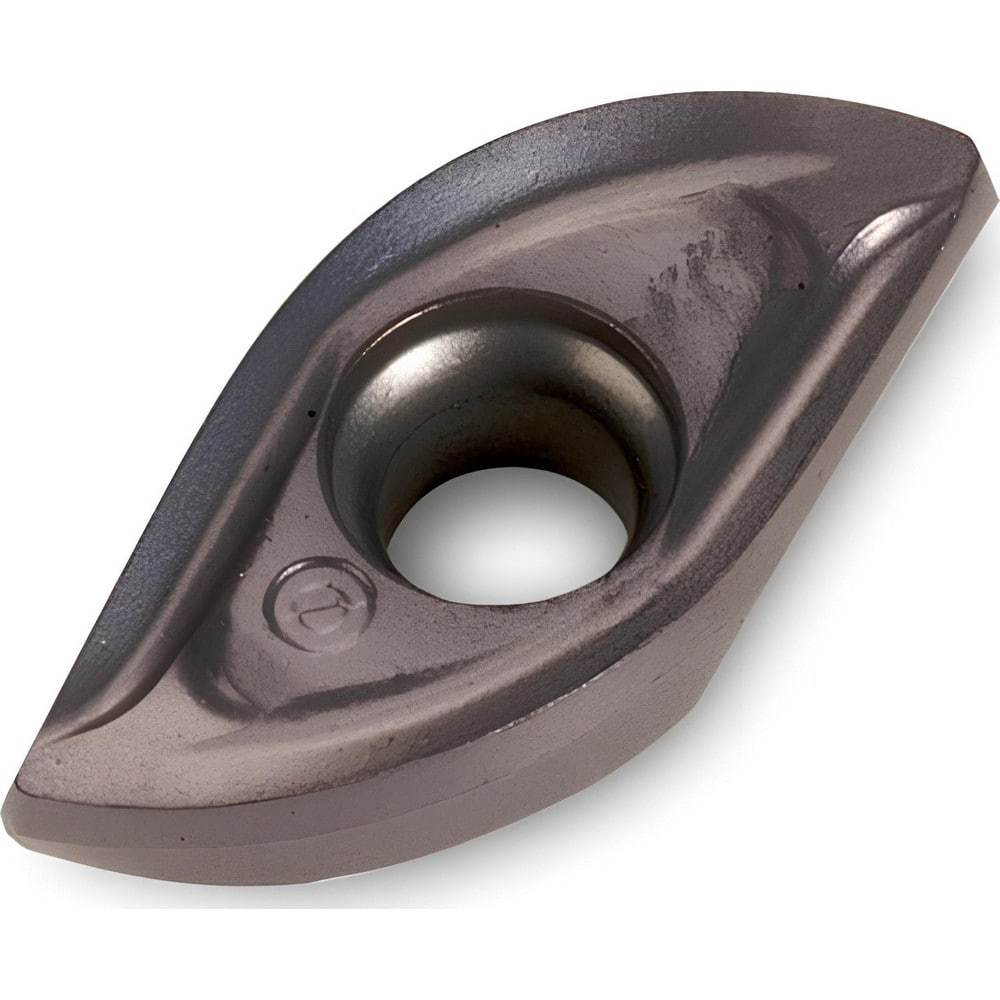

Brand: Ingersoll Cutting Tools / Part #: 5812901
Item #: 55681126
Brand: Ingersoll Cutting Tools
Model #: 5812901
Product Specifications
| Insert Style | NKET |
| Insert Size Code | 120200 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2030 |
| Inscribed Circle (Decimal Inch) | 0.2360 |
| Corner Radius (Inch) | 1/4 |
| Insert Hand | Right Hand |
| Series | NKET |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.4610 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Ball Nose |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Ansi Code | NKET120200R |
| Manufacturers Catalog Number | NKET120200R IN2030 |
| Cutter Series Compatibility | 1BW8T; 1BW8W; 1BW8V; 1BW7 |
| Chip Breaker | None |
| Cutting Direction | Right Hand |
| Shape | Ball Nose |
| Length of Cut (mm) | 11.7100 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Width (Decimal Inch - 4 Decimals) | 0.2360 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2360 |
| Multi-Use Tool | Yes |
