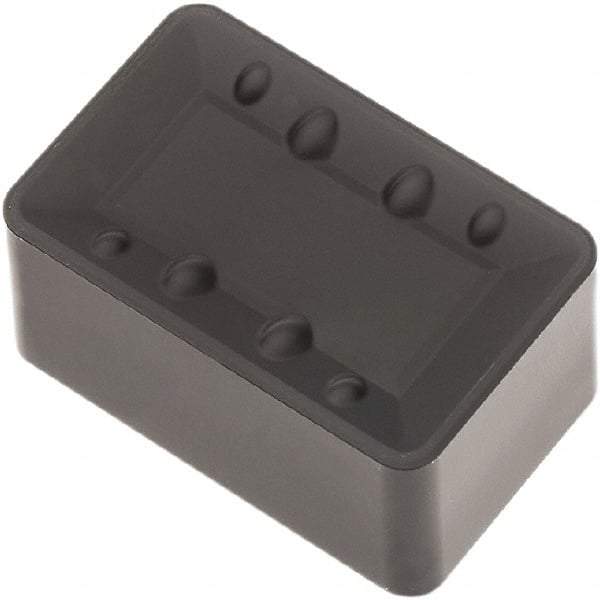

Seco - LNMX401432 RR96 Grade TP1501 Carbide Turning Insert - Al2O3 Finish, 90° Rectangle, 25.2mm Inscr Circle, 14mm Thick, 1/8" Corner Radius
Item #: 37203056
Brand: Seco
Model #: 18863
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMX |
| Insert Size | 401432 |
| Material | Carbide |
| Inscribed Circle (mm) | 25.20 |
| Inscribed Circle (Decimal Inch) | 0.9920 |
| Thickness (Decimal Inch) | 0.5512 |
| Thickness (mm) | 14.00 |
| Corner Radius (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.1260 |
| Manufacturer's Grade | TP1501 |
| Coating | Al2O3 |
| Chip Breaker | RR96 |
| Hole Diameter (mm) | 9.30 |
| Hole Diameter (Decimal Inch) | 0.3661 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | Duratomic |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | K |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Lever Lock |
| FullRadius | No |
| Shape | Rectangle |
