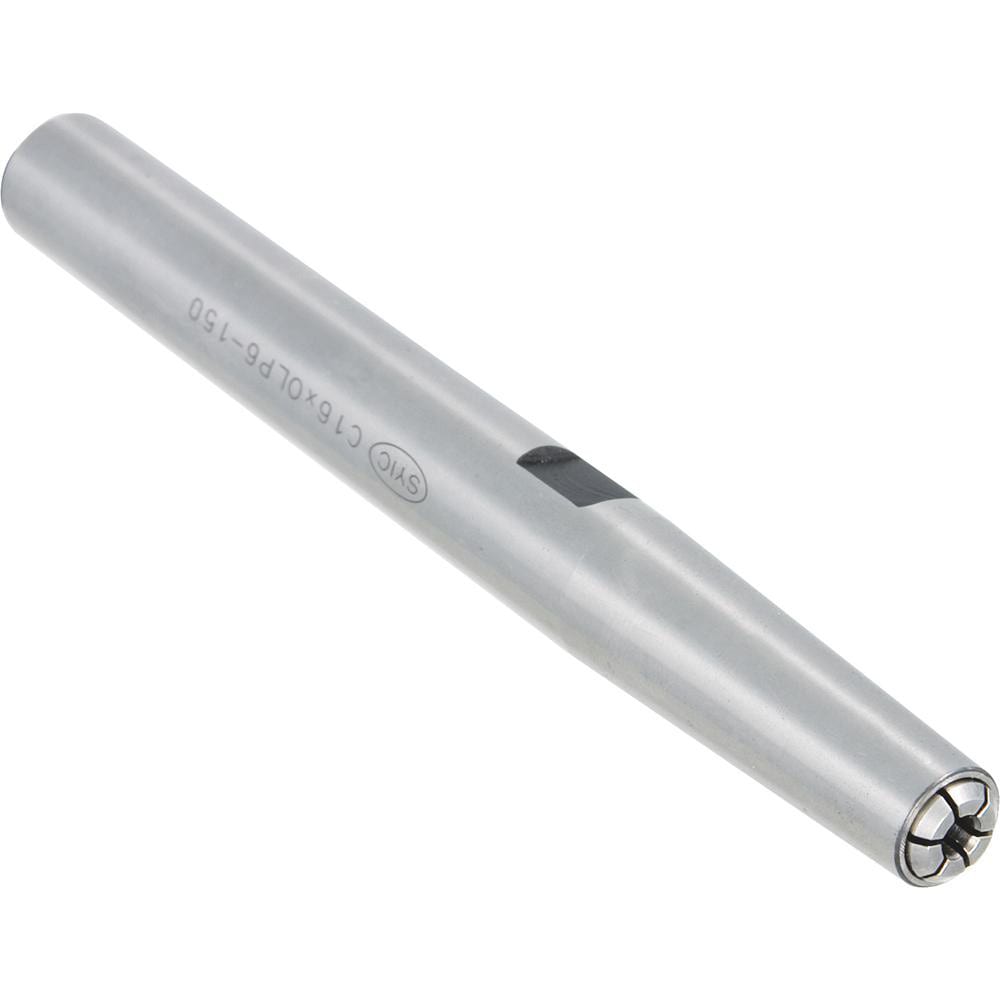

Collet Chuck: 0.2500 to 0.2500" Capacity, ER Collet, 0.5000" Shank Dia, Straight Shank
Item #: 09536368
Brand: Techniks
Model #: 36730
Product Specifications
| Collet System | ER |
| Collet Series | SBL6 |
| Shank Type | Straight |
| Projection (Decimal Inch) | 3.0000 in |
| Through Coolant | No |
| Minimum Collet Capacity (Decimal Inch) | 0.2500 |
| Maximum Collet Capacity (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 3 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.4800 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Type | STRSHK |
| UNSPSC Code | 27112808 |
