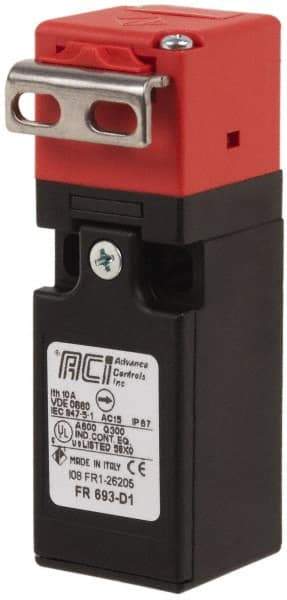

ACI - 10 Amp, 24-300 VDC, 250-600 VAC, 3 Pole Fused Safety Switch - 10 Amp, 24-300 VDC, 250-600 VAC, 1.969 Inch Wide x 1.24 Inch Deep x 3.41 Inch High, Nonmetallic, 3NC Contact Configuration
Item #: 37028941
Brand: ACI
Model #: 117838
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Fused | Fused |
| Number of Poles | 3 |
| Amperage | 10 |
| Voltage | 24-300 VDC; 250-600 VAC |
| Contact Configuration | 3NC |
| Material | NonMetallic |
| Overall Height (mm) | 86-1/2 |
| Overall Height (Decimal Inch) | 3.4100 |
| Overall Width (mm) | 50 |
| Overall Width (Decimal Inch) | 1.9690 |
| Overall Depth (Decimal Inch) | 1.2400 |
| Overall Depth (mm) | 31-1/2 |
| Standards Met | CE; cULus; UL File E131787 |
