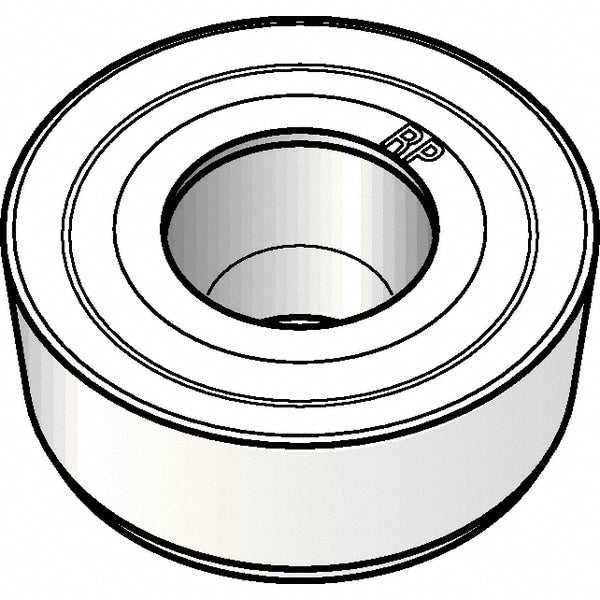

Turning Insert: RCMX2507M076 KCP25B, Carbide
Item #: 47451646
Brand: Kennametal
Model #: 6181316
Product Specifications
| ANSI Insert Code | RCMX250700 |
| ISO Insert Code | RCMX2507M0 |
| Relief Angle | 7 |
| Insert Style | RCMX |
| Corner Radius (Decimal Inch) | 0.4921 |
| Included Angle | 360 |
| Manufacturer Grade | KCP25B |
| Coating/Finish | TiOCN; TiCN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/16 |
| Insert Thickness (Decimal Inch) | 0.3125 |
| Series | Railroad Turning |
| Inscribed Circle (Decimal Inch) | 0.9843 |
| Inscribed Circle (Inch) | 63/64 |
| Inscribed Circle (mm) | 25.00 |
| Insert Material | Carbide |
| Insert Shape | R - Round |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | R |
| Hole Diameter (Decimal Inch) | 0.2913 |
| Maximum Depth of Cut (Fractional Inch) | 21/64 |
| Maximum Depth of Cut (Decimal Inch) | 0.3278 |
| Insert Holding Method | Screw |
| Width (Inch) | 63/64 |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | MTCVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.9843 |
| Insert Length (Inch) | 63/64 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; N |
| Iso Code | RCMX2507M076 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6181316 |
| Material Grade | C3; C6; C7; C2 |
| Proprietary Coating Designation | Multilayer Coating |
| Coating Classification | CVD |
| Chip Breaker | 76 |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.9843 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 250700 |
| ISO Size Code | 2507M0 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 2507M0 |
