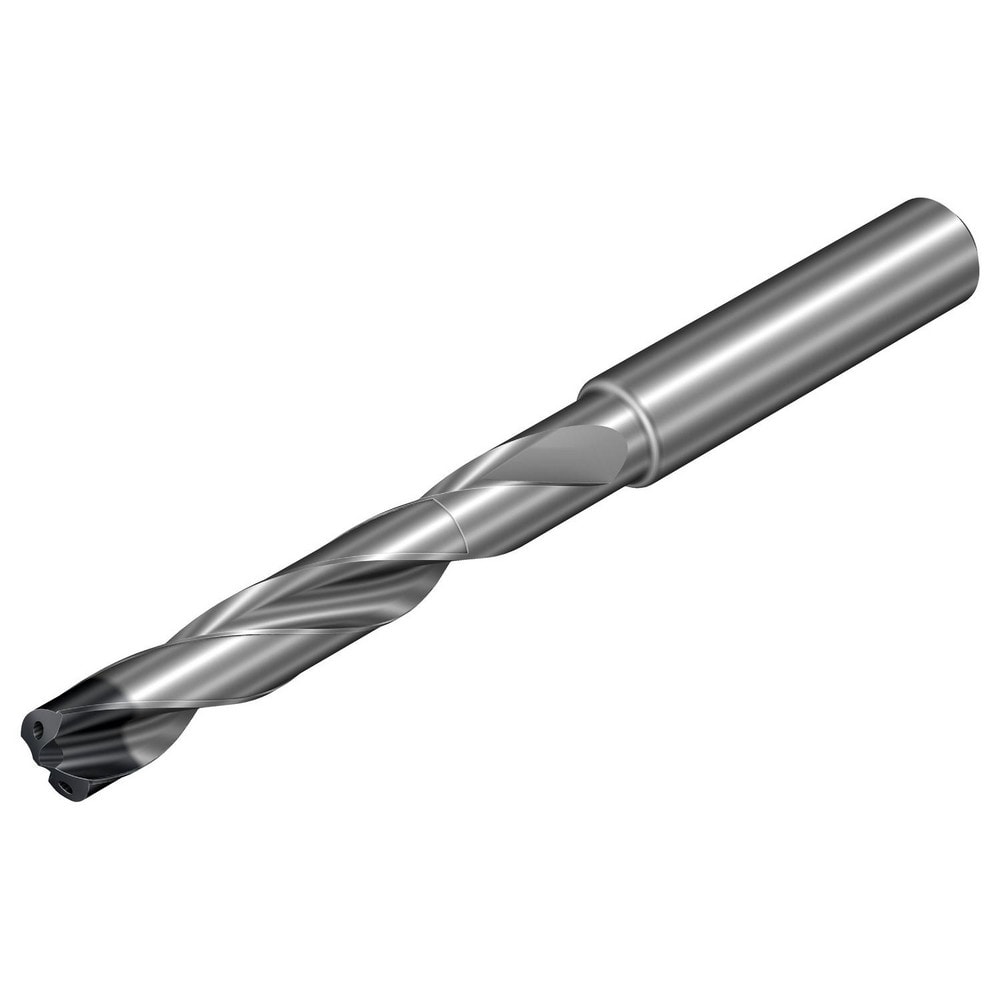

Taper Length Drill: 0.1969" Dia, 140 deg, Solid Carbide
Item #: 76661222
Brand: Sandvik Coromant
Model #: 8421232
Product Specifications
| Drill Bit Size (mm) | 5.00 |
| Drill Bit Size (Decimal Inch) | 0.1969 |
| Tool Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlSiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Straight |
| Shank Diameter (mm) | 6.0000 |
| Flute Length (Decimal Inch) | 2.4410 |
| Flute Length x Diameter Ratio | 8xD |
| Overall Length (mm) | 104 |
| Overall Length (Decimal Inch) | 4 |
| Material Application | Superalloys & Titanium |
| Series | 860.1 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 1.6106 |
| Maximum Drilling Depth (mm) | 40.91 |
| Shank Length (Decimal Inch) | 1.6535 |
| Shank Length (mm) | 42.000 |
| Drill Point Length (Decimal Inch) | 0.0358 |
| Flute Length (mm) | 62.00 |
| Drill Point Length (mm) | 0.91 |
| Tool Performance | High Performance |
| Specification Number | DIN 6535 |
| Drill Bit Grade | S2BM |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
| Drill Bit Size (mm) | 5.00 |
| Drill Bit Size (Decimal Inch) | 0.1969 |
| Tool Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlSiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split |
| Coolant Through | Yes |
| Shank Type | Straight |
| Shank Diameter (mm) | 6.0000 |
| Flute Length (Decimal Inch) | 2.4410 |
| Flute Length x Diameter Ratio | 8xD |
| Overall Length (mm) | 104 |
| Overall Length (Decimal Inch) | 4 |
| Material Application | Superalloys & Titanium |
| Series | 860.1 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 1.6106 |
| Maximum Drilling Depth (mm) | 40.91 |
| Shank Length (Decimal Inch) | 1.6535 |
| Shank Length (mm) | 42.000 |
| Drill Point Length (Decimal Inch) | 0.0358 |
| Flute Length (mm) | 62.00 |
| Drill Point Length (mm) | 0.91 |
| Tool Performance | High Performance |
| Specification Number | DIN 6535 |
| Drill Bit Grade | S2BM |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
| MSC Part # | 76661222 |
| Mfr Part # | 8421232 |
| Country of Origin Country of Origin is subject to change | China |
